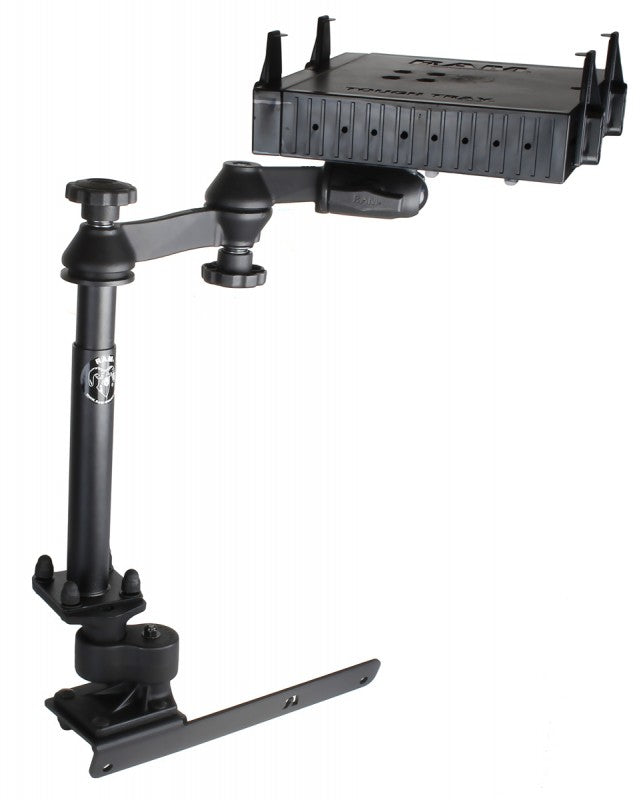

RAM-VB-178A-SW1-FL RAM Mounts No-Drill Laptop Mount with Adjust-A-Pole and Tough-Tray Flat Retaining Arms for the Dodge RAM 1500-5500
RAM Mounts 793442948152
RAM-VB-178A-SW1-FL RAM Mounts No-Drill™ Laptop Mount with Adjust-A-Pole™ and Tough-Tray™ Flat Retaining Arms for the Dodge RAM 1500-5500
- 1500 (2012-2018)
- 1500 Classic (2019-2020)
- 2500 - 5500 (2012-2019)
SPECIAL NOTE: This is the recommended base for 2012 models of the Dodge Ram 1500-5500
This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation.
The RAM Tough Tray™ is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four FLAT adjustable retaining arms; these allow for your laptop to close completely while in the RAM Tough-Tray™. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.
Placement of Mount:
Passenger side, front, where seat rail frame attaches to floor board.
No - attaches to seat studs
High Strength Composite and Powder Coated Steel
Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)
If the Tough-Tray™ Laptop Cradle is intended to hold a laptop or device while the vehicle is in motion, we recommend the Secure-N-Motion™ kit. (Click here to learn more and order)
RAM-VB-178A-SW1-FL Installation Instructions
