RAP-B-404-238U Tough-Claw™ Medium Clamp Mount with Diamond Plate

RAM Mounts

  • $ 47.99


RAP-B-404-238U Tough-Claw™ Medium Clamp Mount with Diamond Plate

OVERVIEW

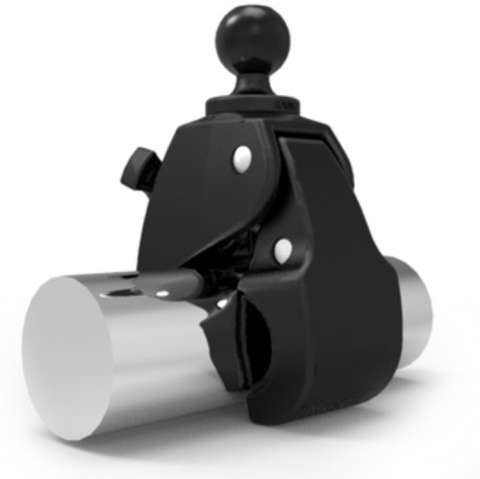

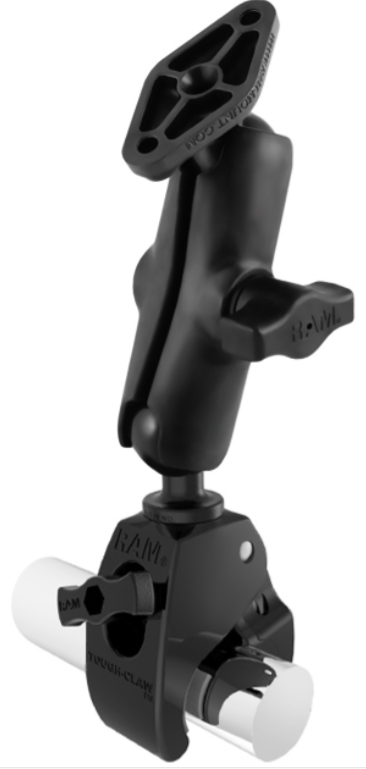

The RAP-B-404-238U consists of the medium Tough-Claw base, double socket arm and diamond base adapter. The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars.

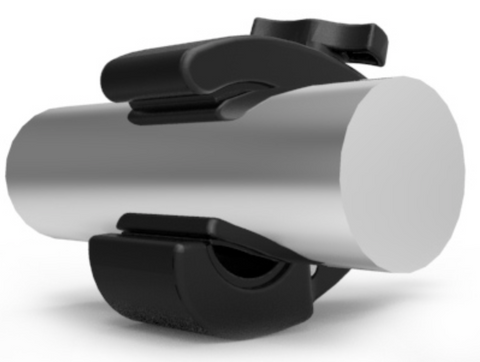

The Tough-Claw can be clamped on rails from 1" to 1.875" outer diameter. The diamond base adapter contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Clamping Range (Rail/Tube Surfaces):
1" to 1.875"

Clamping Range (Flat Surfaces):
0" to 1.6"

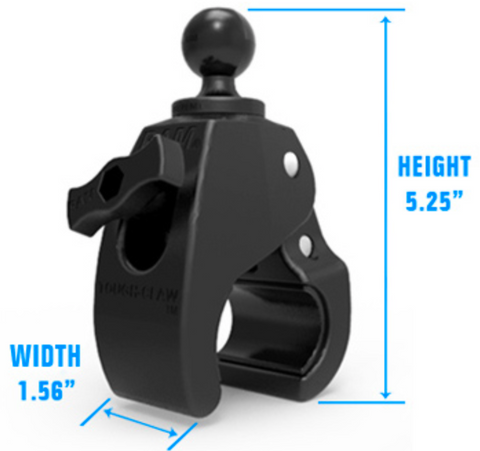

CLAMP RANGE

1" - 1.875" diameter
0" - 1.6" flat surfaces


SOCKET-TO-SOCKET LENGTH

3"


HOLE PATTERN

2-Hole AMPS: 1.912"


BALL/SOCKET SIZE

B Size (1")


WEIGHT CAPACITY

2 lbs


MATERIALS

High strength composite


PACKAGING TYPE

Poly Bag


WEIGHT

0.88 lbs.
THIS PRODUCT SHIPS TO THE UPPER 48 UNITED STATES ONLY (NO INTERNATIONAL SHIPPING)
