RAP-402U RAM Mounts Cable Manager for RAM Large D-Size 2.25" Ball (4-Inch Base) ONLY

RAP-402U RAM Mounts Cable Manager for RAM Large D-Size 2.25" Ball (4-Inch Base) ONLY

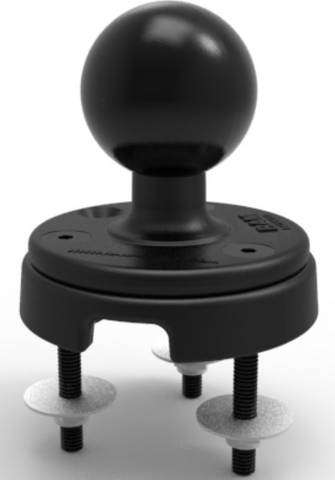

Special note: Balls, cables and arms shown in photos are for demonstration purpose only. They are not included with the cable manager.

Compatible RAM Mounts: Compatible with all RAM Mounts 2.25" diameter ball (4-inch NON-AMPS bases) that contain a three hole, 120 degree hole pattern (NOT AMPS HOLE PATTERN).

The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application.

The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This item will fit any of the 4" diameter round plates with a 3 hole pattern. (Will not work with the AMPs hole pattern plates)

Dimensions:
Cable slot height: 0.45”
Cable slot width: 0.95”
Max mounting surface thickness: 1.47”

Material:
High Strength Composite and Glass Filled Nylon

IMPORTANT:
To prevent galling of threads during assembly, it is imperative that all threads are lubricated with oil prior to assembly.  Will not work with the AMPs hole pattern plates.

Note:
The "U" in the part number reflects product packaged in poly bag. RAM ball base not included with purchase.
