RAP-111U RAM Mounts Universal Composite Marine Electronic Mount
RAP-111U RAM Mounts Universal Composite Marine Electronic Mount
SPECIAL NOTE:
- The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
OVERVIEW

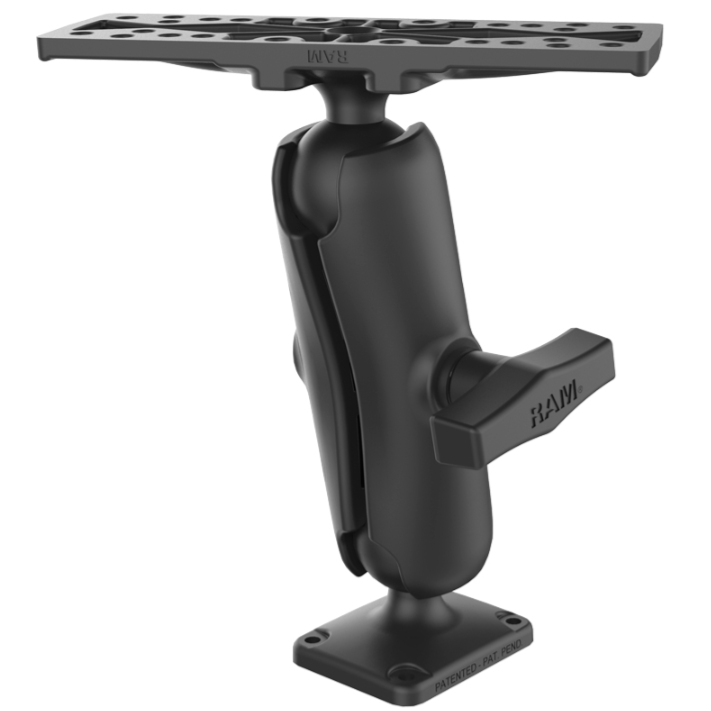

The RAP-111U consists of a 2" x 1.7" 2" x 1.7" square base that contains the universal AMPs hole pattern, STANDARD LENGTH double socket arm and 6.25" x 2" rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
See Drawing
See Drawing
PLATE SIZE

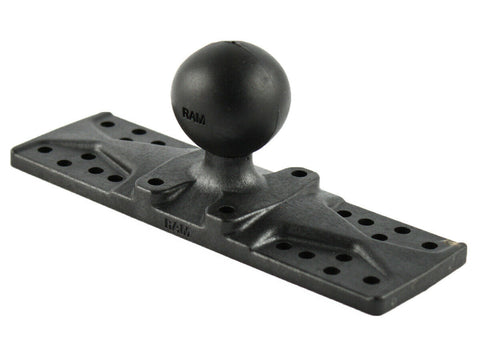

Top Plate: 6.25" x 2"
Bottom Plate: 2" x 2.25"
Bottom Plate: 2" x 2.25"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
0.95 lbs.
ADDITIONAL INFORMATION
- The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
