RAM-VPR-102-1 RAM Quick-Draw™ Holder with Double U-Bolt Base for Canon BJC-85 & i80 Printers
RAM-VPR-102-1 RAM Quick-Draw™ Holder with Double U-Bolt Base for Canon BJC-85 & i80 Printers
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
COMPAtIBLE DEVICES:
BJC-85 portable printers
i80 portable printers
i90 portable printers
iP100 photo inkjet printers
OVERVIEW

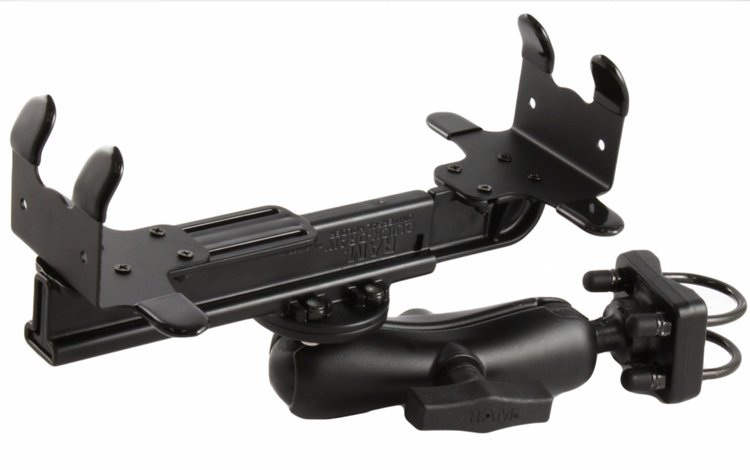

The RAM-VPR-102-1 is designed to hold Canon BJC-85 portable printers. The cradle uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM Tele-Pole™ and other poles with a diameter from 1.25" to 1.5".
HARDWARE INCLUDED
Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
HOLDER DIMENSIONS
Max Height: 1.75"
Width Range: 8" - 14.5"
Width Range: 8" - 14.5"
CLAMP RANGE
1.25" - 1.5" diameter
SOCKET-TO-SOCKET LENGTH
4.66"
BALL SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Powder coated steel
Marine-grade aluminum
High strength composite
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
1.78 lbs.
