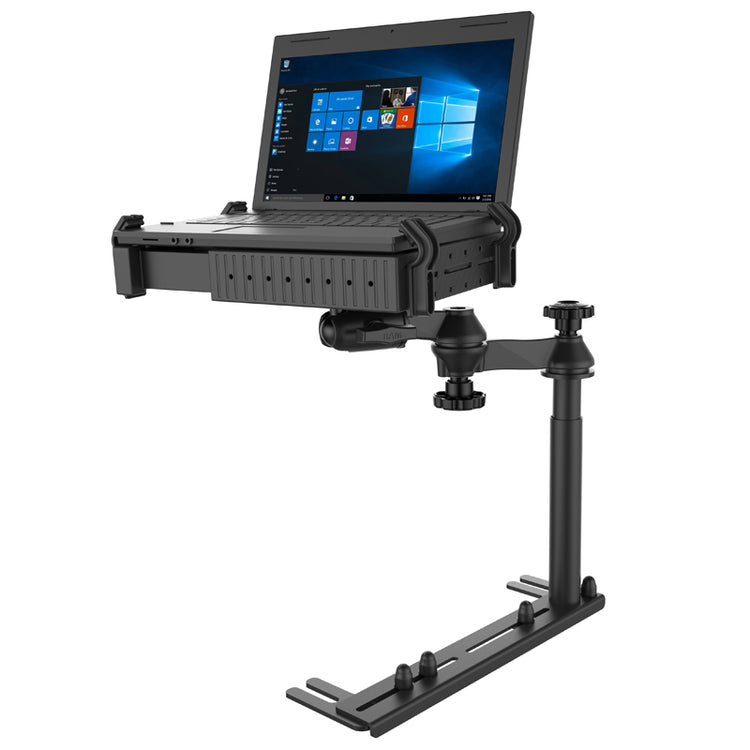

RAM-VB-196-SW1 RAM Mounts Universal No-Drill Laptop Mount w/ Adjustable Base

RAM-VB-196-SW1 RAM Mounts Universal No-Drill™ Laptop Mount w/ Adjustable Base

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.

* SPECIAL NOTE: THIS MOUNT IS FOR FLAT SEAT BOLTS ONLY. YOU MUST CHECK YOUR SEAT BOLTS BEFORE PURCHASING. NO REFUNDS FOR FAILURE TO INSPECT SEAT BOLTS AND MEASURE CORRECTLY.

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.

ITEMS TO CHECK:

1-ARE YOUR SEAT BOLTS FLAT?

2-ARE YOUR SEAT BOLTS BETWEEN 9 INCHES AND 18.875 INCHES APART (CENTER TO CENTER)?

OVERVIEW

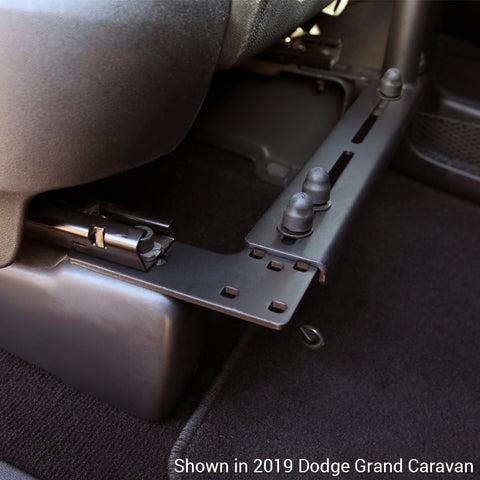

The RAM® Universal No-Drill™ Laptop features a heavy-duty steel mounting base designed to fit a variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle.

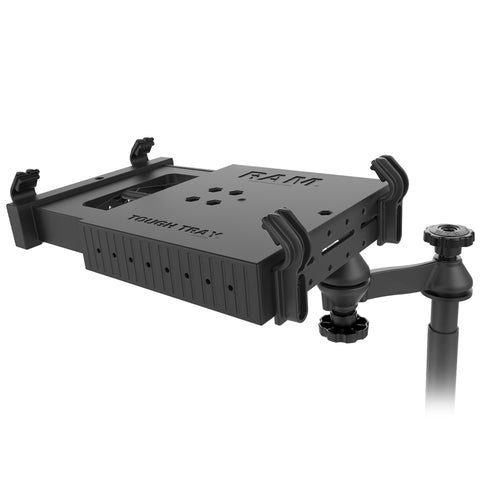

The included RAM Tough-Tray™ is spring loaded to accommodate 10" to 17" laptops. The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support phones or other electronics.


HARDWARE INCLUDED
Assembly Hardware
Stabilizer Foot


PRODUCT DIMENSIONS
Height Range: 18.25" - 24"


TRAY DIMENSIONS
Width Range: 10" - 16"


Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"


HOLE PATTERN
Seat Bolt Distance: 9"-18.875" center to center


BALL/SOCKET SIZE
C Size (1.5")


MATERIALS
Powder coated steel
Marine grade-aluminum
High strength composite


PACKAGING TYPE
Box


WEIGHT
14.0 lbs.


ADDITIONAL INFORMATION
Will this mount install in your vehicle? Learn more by following the steps in this document:

Depending on your vehicle, some installations may limit the adjustability of the passenger seat.

Weight: 24 Lbs.
