RAM-HOL-UN5U RAM Mounts Universal Large Phone Holder (SEE SPECS)

RAM Mounts

  • $ 12.49


RAM-HOL-UN5U RAM Mounts Universal Large Phone Holder (SEE SPECS)

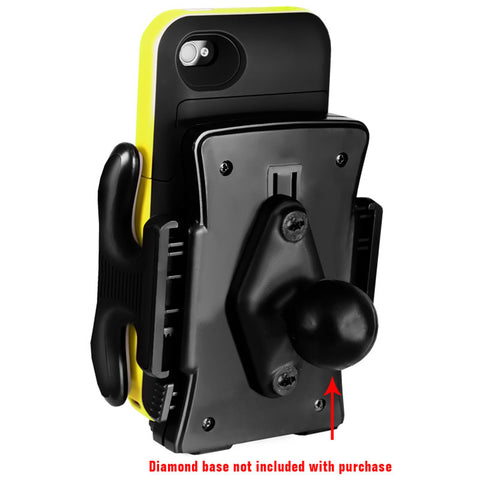

SPECIAL NOTE: ALTHOUGH TITLED "UNIVERSAL" THE CUSTOMER NEEDS TO MEASURE THEIR DEVICE AND COMPARE WITH THE MEASUREMENTS AND SPECIFICATIONS LISTED BELOW BEFORE PURCHASING. ABSOLUTELY NO REFUNDS OR EXCHANGES DUE TO "FAILURE TO CORRECTLY MEASURE". BALL MOUT SHOWN ON THE BACK OF THE CRADLE IS NOT INCLUDED.

HOLDER DIMENSIONS

Width Range: 1.75" to 3.5"

OVERVIEW

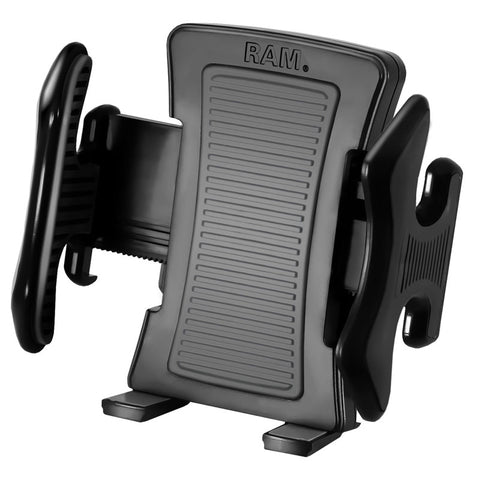

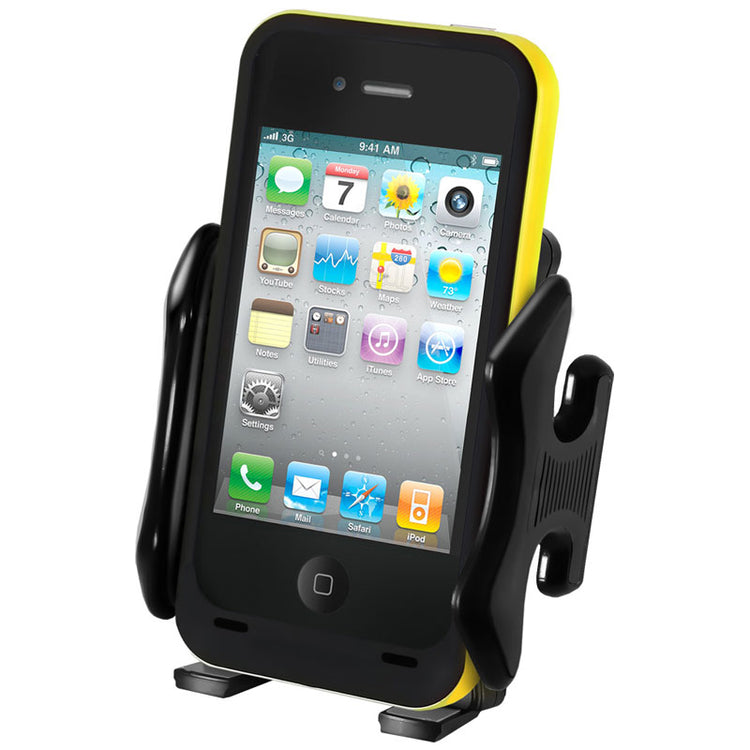

The RAM universal spring loading clamping cradle includes side clamps with rubber bumpers that adjust accordingly to the width of your device, securing your device in the cradle. The feet at the base of the cradle can pivot and slide, creating an opening for larger devices to be attached. A release button, located on the bottom right side of the cradle, allows for quick release of your device. Also included are two threaded inserts and a set of two nuts/bolts to connect the cradle to any of the RAM compatible mounts. Primary mounting applications for the clamping cradle is in LOW VIBRATION environments including cars, trucks and fleet vehicles.

Included is a set of two nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

HARDWARE INCLUDED

(2) M4 x 16mm Machine Screws


HOLDER DIMENSIONS

Width Range: 1.75" - 3.5"


HOLE PATTERN

2-Hole AMPS: 1.912"


MATERIALS

High strength composite


PACKAGING TYPE

Poly Bag


WEIGHT

0.26 lbs.
