RAM-HOL-SAM60PU RAM EZ-Roll'r™ Powered Dock for Samsung Tab Active3 and Tab Active2

RAM Mounts

$ 71.49
Save $ 9

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

BALL FOR BACK OF CRADLE IS NOT INCLUDED.

SPECIAL NOTE: You'll need either the optional RAM skin or the factory skin from Samsung to make a secure connection with this powered dock.

COMPATIBLE DEVICES:

SAMSUNG: Tab Active3 and Tab Active2 ONLY

FEATURES

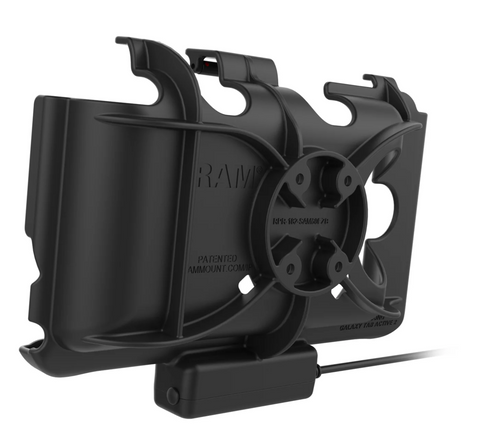

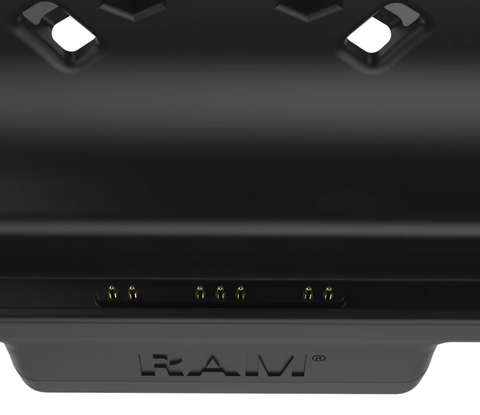

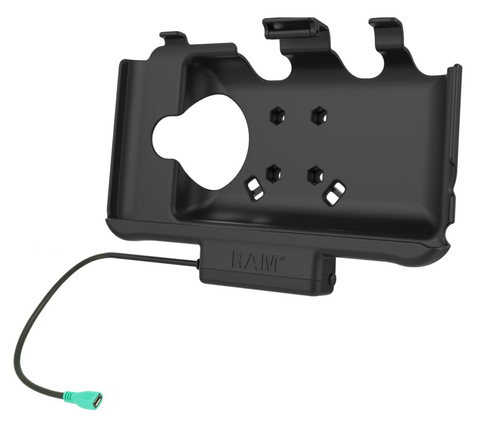

RAM^® EZ-Roll'r^™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable
Compatible with the Samsung OEM skin as well as the RAM^® Skin^™; built-in cavity in the back allows for GDS^® Hand-Stand^™ compatibility
Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS^® shoulder strap loops on RAM^® Skin^™
Backed by a 3-year warranty

OVERVIEW

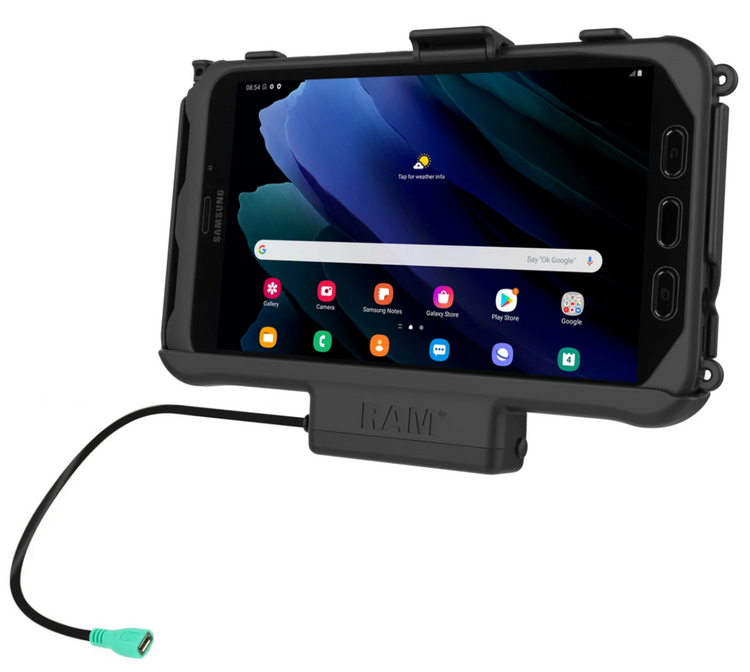

This powered cradle for the Samsung Tab Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode.

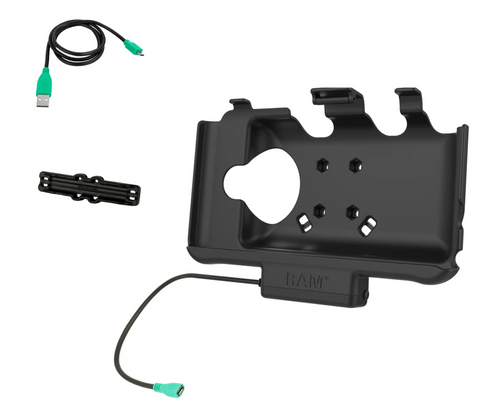

This cradle is also compatible with the RAM^®Skin^™ or factory device skin, as well as GDS^® Hand-Stand^™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM^® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS^® USB 2.0 cable, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V7BU hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power.

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS^® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties

PRODUCT DIMENSIONS

Width: 9.24"
Height: 6.34"
Depth: 2.57"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT VOLTAGE

4.4VDC - 5.4VDC (USB power source dependent)

OUTPUT VOLTAGE

4.4VDC - 5.4VDC (USB power source dependent)

INPUT CONNECTOR

mUSB Female

WARRANTY

3 year warranty

WEIGHT

0.71 lb

ADDITIONAL INFORMATION

This product will not support the "No Battery Mode" function of the Tab Active3.
