RAM-GDS-U1-SAM90-KIT5 RAM GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5

RAM Mounts

$ 407.99
Save $ 45

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.

PLEASE READ ALL SPECIFICATIONS BEFORE PURCHASING.

COMPATIBLE DEVICES: Samsung Tab Active5 ONLY

Overview

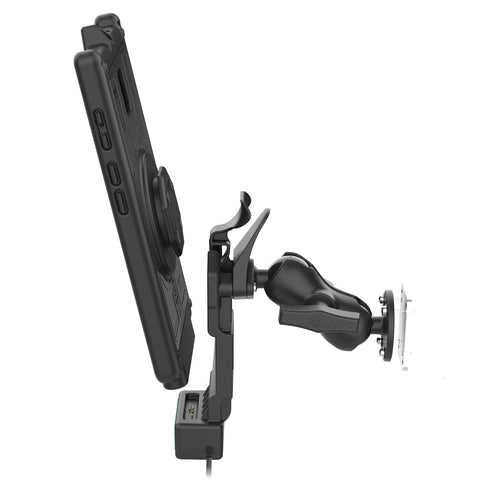

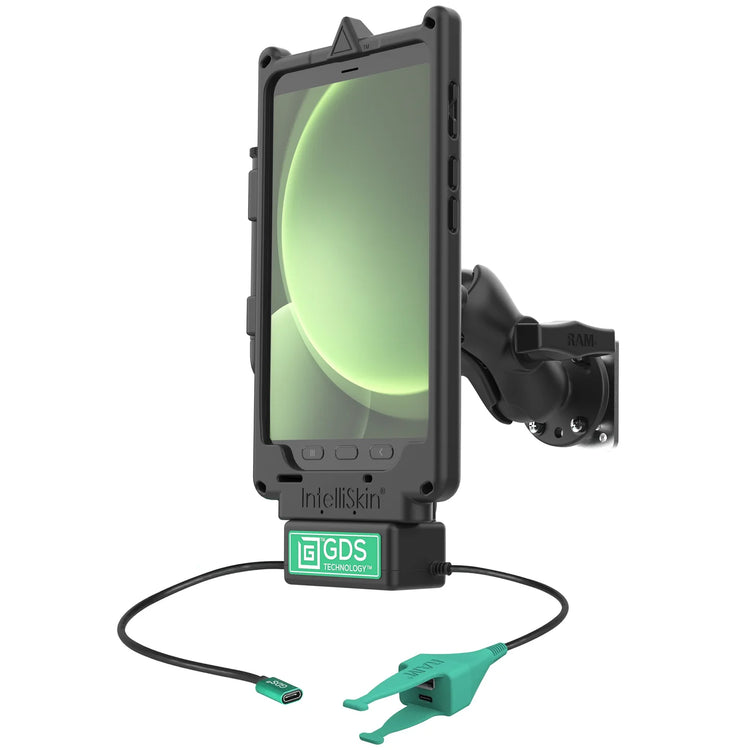

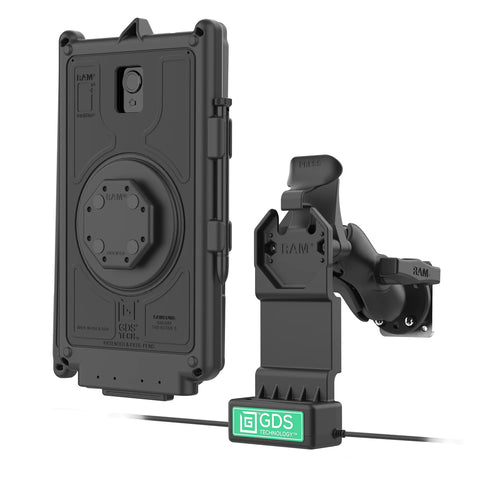

The GDS^® Uni-Conn^™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT5) is a comprehensive kit of everything needed to deploy the Tab Active5 in your fleet. It contains one GDS^® Uni-Conn^™ dock, Uni-Conn^™ adapter, IntelliSkin^® for the Tab Active5, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-A pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more.

The integrated pogo pins connect to the IntelliSkin^®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin^®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet.

The GDS^® Uni-Conn^™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.^® One Dock to Connect Them All^™

Features

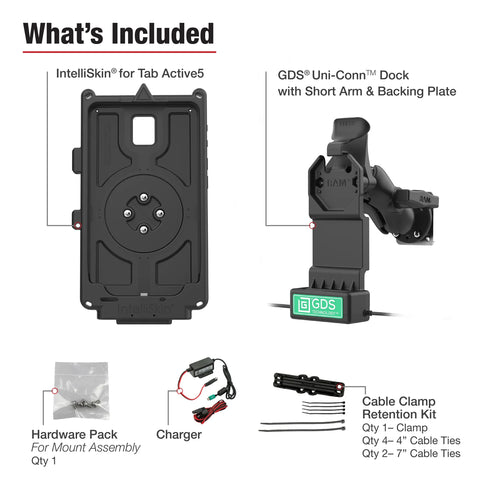

Bundle includes the GDS^® Uni-Conn^™ dock, Uni-Conn adapter, IntelliSkin^® Next Gen for Samsung Tab Active5, C size double ball mount with short arm, backing plate adapter, and cable clamp
Dock features GDS^® Technology^™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
Uni-Conn^™ dock features an easy device insertion and removal
Backed by a 3-year warranty

Hardware included:

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger

Socket to socket length:

2.5"

Hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Ball size:

C Size (1.5")

Materials:

Steel
Marine-grade aluminum
High strength composite

Packaging type:

Box

Output voltage:

5V - 15V @ 3A

Power output:

45W

Input connector:

USB Type-C (Power In)

Input cable length:

215mm

Output connector:

(1) USB Type-C & (1) USB Type-A (Peripheral)

Output cable length:

215mm

Peripheral output:

900mA (per port)

Warranty:

3 year warranty

Weight:

2.93 lb
