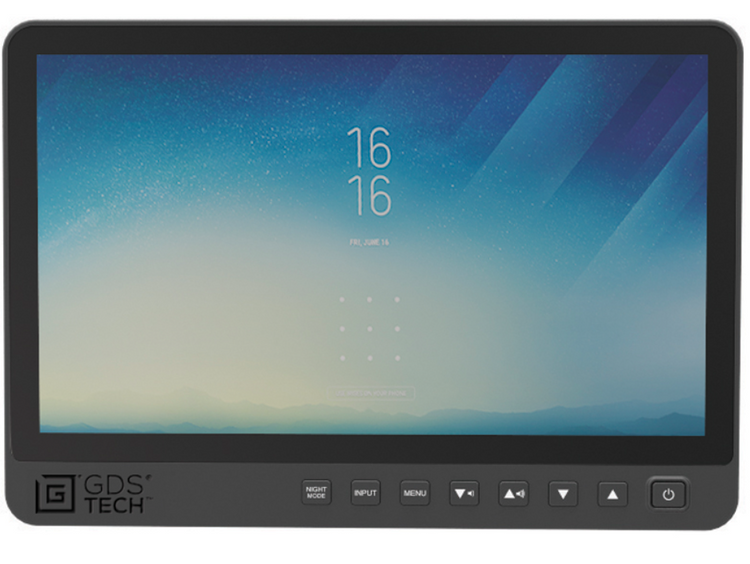

RAM-GDS-MON-13-1 RAM Mounts GDS® View™ 13.3" Touch Screen Monitor

RAM Mounts

  • $ 1,176.49


RAM-GDS-MON-13-1 RAM Mounts GDS® View™ 13.3" Touch Screen Monitor



Compatible vehicle mounts:

75mm X 75mm VESA plates

RAM-VP-SW2F-89-2461

RAM-VP-SW2F-45-2461

RAM-VP-SW2F-8-2461



The GDS® View 13.3” touchscreen monitor lets you take the PC experience on the road. Featuring VESA hole patterns compatible with the RAM-2461U and RAM-D-2461U mounting plates, create a mobile workstation that takes advantage of the GDS® Ecosystem for data sync and charging capabilities.

The GDS® Viewmonitor has undergone MIL-STD-810G 514.5 vibration testing, ensuring performance in the most demanding environments. This two-point capacitive touchscreen monitor allows you to pinch, zoom, and select – and includes an anti-glare and anti-fingerprint treatment.

Control buttons on the front of the monitor are easy to access, while a red monochrome night mode helps to reduce eyestrain. In addition, two integrated 2W speakers allow for audio. Includes HDMI, VGA, and USB Type-B to USB Type-A cables.

GDS® View™ Specifications:
  • 75mm x 75mm VESA mounting with #10-24 hardware, compatible with RAM-2461U and RAM-D-2461U mounting plates
  • Screen size: 13.3”
  • Anti-glare and Anti-fingerprint treatment applied on LCD
  • Max. Resolution: 1920 x 1080 high resolution
  • Aspect ratio: 16:9
  • Touch panel: 2-point capacitive touch
  • Audio: 2 qty - 2W speakers
  • Brightness: 800nits
  • Contrast ratio: 1000:1
  • Output: 3 qty USB 2.0 Type-A
  • Inputs: 1 qty HDMI, 1 qty USB Type-B, 1 qty VGA, 1 qty Audio in, 1 qty VGA, 1 qty Power 5.0mm with screw in connection
  • Cables included: HDMI, VGA and USB Type-B to USB Type-A
  • Red monochrome night mode to reduce eye strain for night viewing
  • Control buttons on front of monitor for easy access
  • Zip tie attachment loops for cable management
  • MIL-STD-810G 514.5 Vibration Tested
  • FCC, CE, IC, RCM, WEEE, e-Mark, ISO 7637-2, and RoHS
  • Vehicle hardwire and cigarette lighter charger included
  • Input: 10V-30V DC
  • Cable Length: 10 feet
  • Operating Temperature: -10°C - 60°C
  • Storage Temperature: -40°C - 70°C
  • Overvoltage/Load Dump Compliance: Meets SAE J-1113
  • Integrated Short Circuit Protection (SCP)
  • FCC, CE, IC, RCM, WEEE, e-Mark and RoHS

    Warranty Status:  1 year warranty
