RAM-GDS-FAN1U RAM Mounts Fan Accessory for GDS® Tough-Dock™
RAM-GDS-FAN1U RAM Mounts Fan Accessory for GDS® Tough-Dock™
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
PLEASE READ ALL SPECIFICATIONS BEFORE PURCHASING.
TOUGH-DOCK IS REQUIRED AND NOT INCLUDED.
THIS LISTING IS FOR THE COOLING FAN ONLY.
Overview:

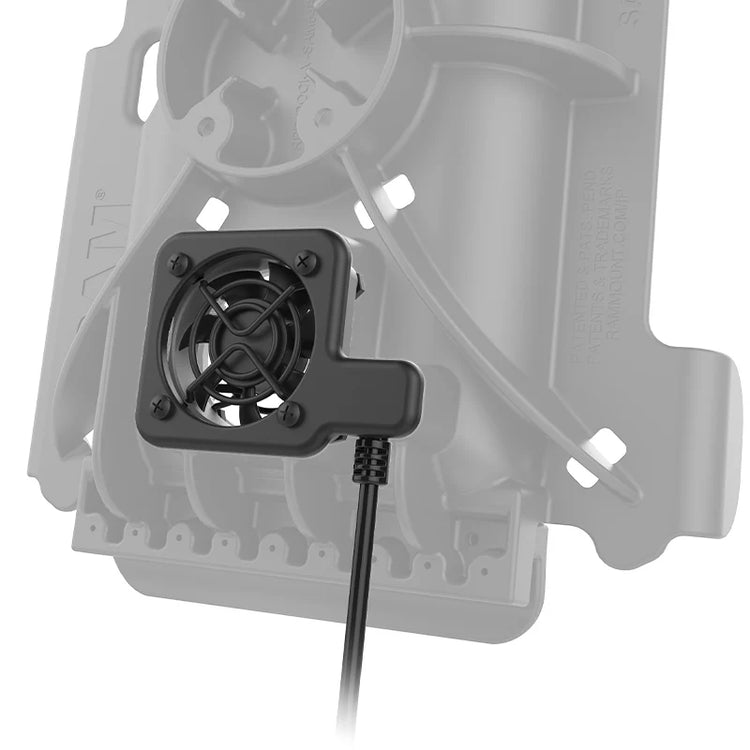

The GDS® Fan Accessory converts the GDS® Tough-Dock™ to a GDS® Cool-Dock™ with a 12-VDC Axial cooling fan, including a built-in 2.2 meter long hardwire cable with SAE quick disconnect plugs. With a speed of 8000 RPM and airflow of 10 CFM, the GDS® Fan Accessory is designed specifically for the GDS® Tough-Dock™ and GDS® Cool-Dock™ vehicle docks and used to help cool the tablet down during normal operation. Always Protected. Always Connected.®
Features:
- 12-VDC Axial cooling fan with 2.2m long hardwire cable with SAE quick disconnect plugs
- Designed specifically for the GDS® Tough-Dock™ Vehicle Dock
- Backed by a 3-year warranty

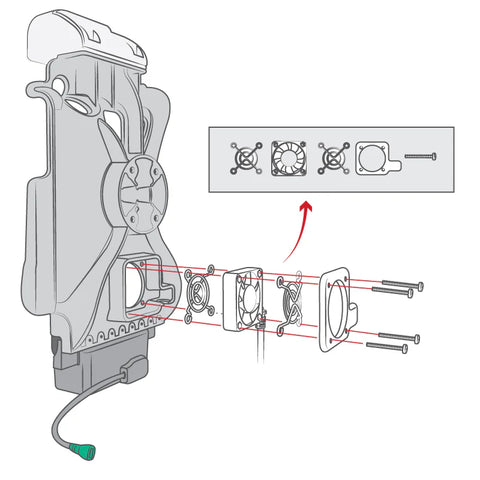

Hardware included:
(1) Cooling Fan
(1) Fan Dock Cover
(2) Fan Guards
(4) #4-40 x 7/8" Machine Screws
(4) #4-40 Nylock Nuts
Materials:
High strength composite
Stainless steel
Packaging type:
Poly Bag
Weight:
0.29 lb
QUESTIONS AND ANSWERS:
Q: How does the fan get power?
A: (FROM RAM MOUNTS) The fan will automatically turn on when it is plugged into a power source using the provided hardwire cable with SAE quick disconnect plugs.
Q: Which way round does the fan install? There's a spec decal on one side. Is that showing when installed or facing the tablet? Is it meant to blow air onto the tablet or suck air out? The way it's set up is to suck air out. I don't understand. There is no indication on your instructions and the photo on your website doesn't help.
A: (FROM RAM MOUNTS) I just checked a couple fans we have installed here, and the spec decal should be facing toward the tablet (visible from the inside of the dock).
