RAM-GDS-DOCKLF-SAM78CPU RAM Locking GDS® Cool-Dock™ with USB Type-C for Samsung Tab S7+ & S7 FE
RAM-GDS-DOCKLF-SAM78CPU RAM Locking GDS® Cool-Dock™ with USB Type-C for Samsung Tab S7+ & S7 FE
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
BALL MOUNT FOR BACK OF CRADLE IS NOT INCLUDED. RECOMMEND RAM-202U IF YOU ARE USING A RAM MOUNTS 1.5-INCH C-SIZE CONFIGURATION.
COMPATIBLE DEVICES:
SAMSUNG
Galaxy Tab S7+ 12.4" SM-T970 with IntelliSkin®Next Gen (SOLD SEPARATELY)
Galaxy Tab S7 FE SM-T736B with IntelliSkin®Next Gen (SOLD SEPARATELY)
FEATURES

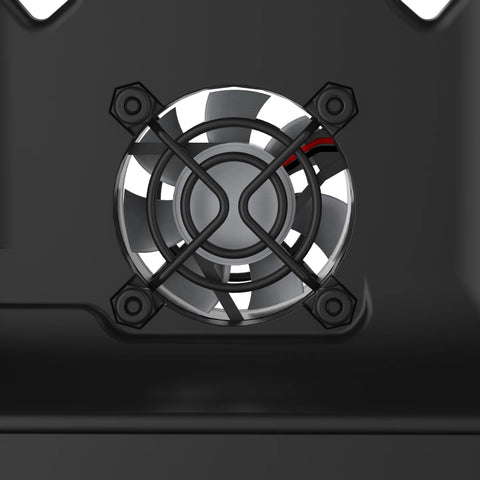

- Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging; Includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation

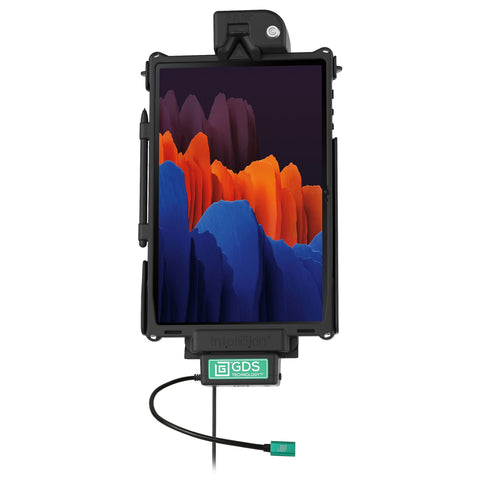

- Designed specifically for the Samsung Galaxy Tab S7+ 12.4" (SM-T970) and S7 FE (SM-T736B) wrapped in an IntelliSkin® Next Gen protective sleeve
- Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty
OVERVIEW

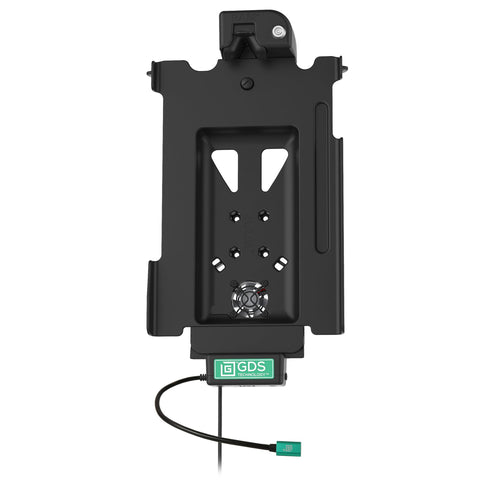

The GDS® Cool-Dock™ is the upgraded version of the GDS® Tough-Dock™ including a key-locking system and a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire charge. The GDS® Cool-Dock™ is the turnkey vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Samsung Galaxy Tab S7+ 12.4" (SM-T970) and S7 FE (SM-T736B) in a IntelliSkin® Next Gen protective sleeve for your fleet.

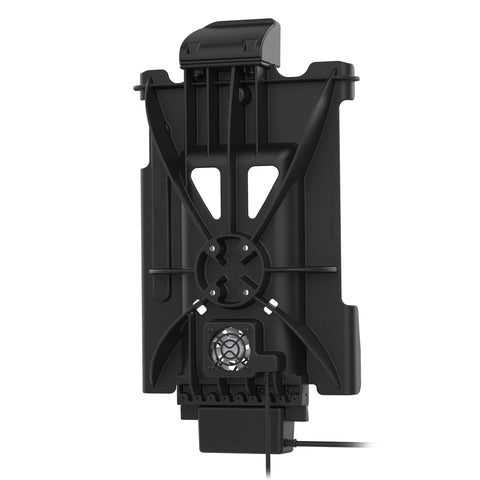

Using a USB Type-C power connector, the GDS® Cool-Dock™ supports high speed charging capabilities for the Samsung Galaxy Tab S7+ 12.4" (SM-T970). The GDS® Cool-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS®Cool-Dock™ is backed by a 3-year warranty.
HARDWARE INCLUDED
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
MATERIALS
High strength composite
PACKAGING TYPE
Poly Bag
OUTPUT VOLTAGE
5V - 12V @ 3A
POWER OUTPUT
15W
INPUT CONNECTOR
USB Type-C
INPUT CABLE LENGTH
.21 Meter
WARRANTY
3 year warranty
WEIGHT
1.85 lb
NOTES:
BALL MOUNT FOR BACK OF CRADLE IS NOT INCLUDED. RECOMMEND RAM-202U IF YOU ARE USING A RAM MOUNTS 1.5-INCH C-SIZE CONFIGURATION.
