RAM-GDS-DOCK-V1CU RAM GDS Vehicle Phone Dock with USB Type-C 3.1 for IntelliSkin Products
RAM-GDS-DOCK-V1CU RAM GDS Vehicle Phone Dock with USB Type-C 3.1 for IntelliSkin Products
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
SPECIAL NOTES:
INTELLISKIN IS REQUIRED AND NOT INCLUDED
BALL FOR BACK OF CRADLE IS SOLD SEPARATELY.

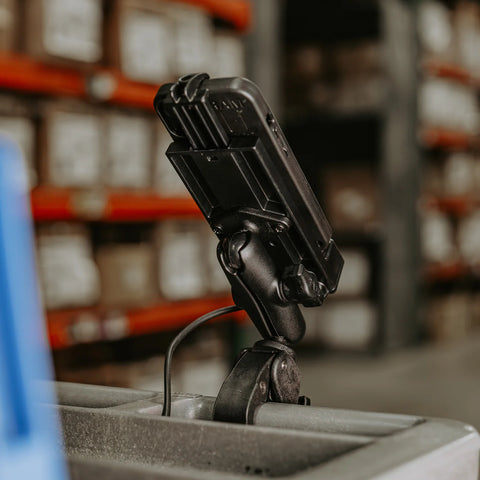

MOUNTING BALL, ARM AND SUCTION CUP SHOWN IN PHOTOS ARE FOR DEMONSTRATION PURPOSES ONLY AND ARE SOLD SEPARATELY
THIS LISTING IS FOR THE CRADLE ONLY WITH NO OTHER ITEMS
Overview

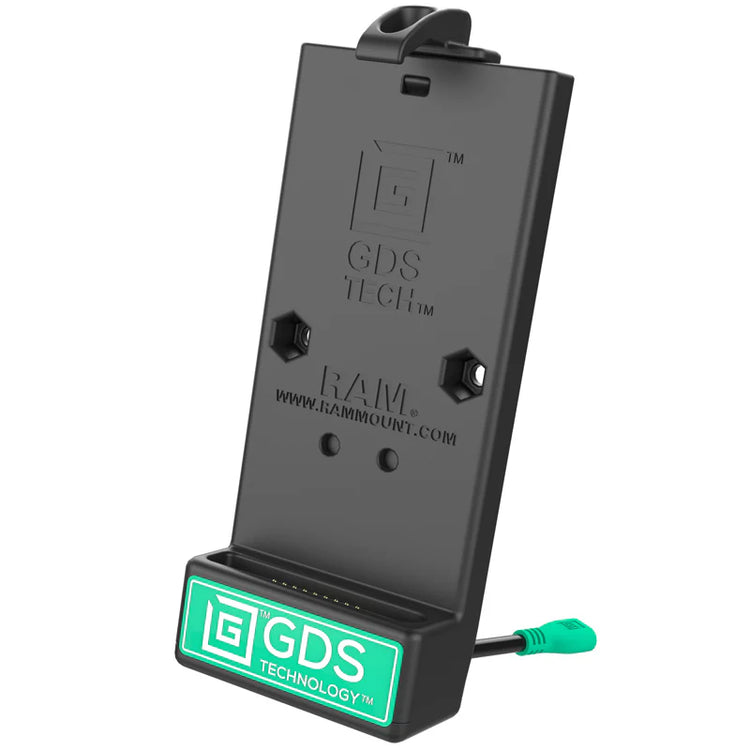

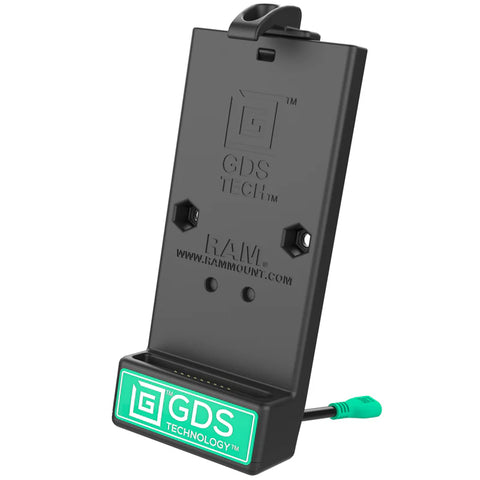

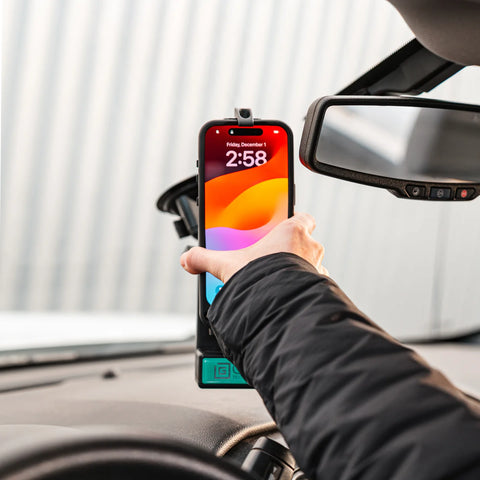

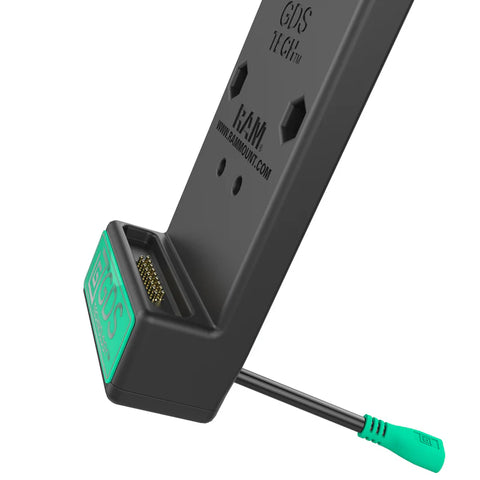

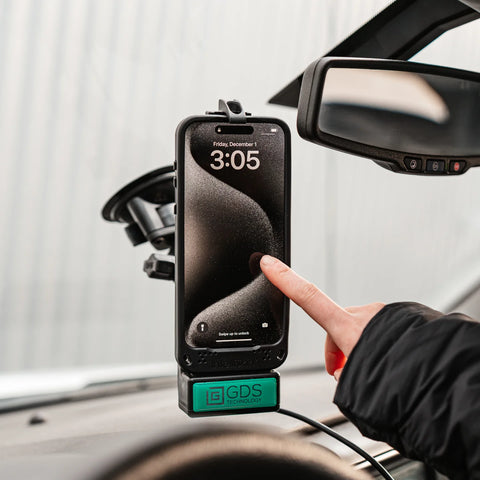

The RAM® Universal Vehicle Phone Dock with GDS® Technology™ is a spring-loaded, quick release cradle that offers a secure fit with easy access to the mounted phone or tablet. This docking station is compatible with any phone or tablet wrapped in an IntelliSkin®. This dock is engineered to support USB Type-C devices and has a USB Type-C port to connect to a power source. The integrated GDS® Technology™ platform enables charging of the mounted device and safely secures the phone in a variety of applications. Without the need to remove the IntelliSkin® from the device, the user can quickly and efficiently mount the device in the vehicle dock and keep the device charged. Always Protected. Always Connected.®
hardware included:
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
hole pattern:
2-Hole AMPS: 1.912"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V @ 2A
5V @ 3A
12V @ 1.5A
12V @ 3A
Charging up to 4A
input connector:
USB Type-C
Warranty:
3 year warranty
Weight:
0.38 lb
QUESTIONS AND ANSWERS:
Q: Will this dock work with the iPhone 16 pro max when the IntelliSkin is available
A: Yes, this will be compatible with the iPhone 16 pro max IntelliSkin when available.
Q: Does this mount allow me to use the phone even in the rain on a motorcycle if it's charging?
A: No, the RAM-GDS-DOCK-V1CU is not intended for open cockpit applications, it is meant for in-cab use only and is not water or weatherproof.
Q: Besides being able to charge through this vehicle dock, can it provide data sync like your Snap-Con connector?
A: Yes, the RAM-GDS-DOCK-V1CU does allow data transfer up to 480mbps.
