RAM-B-346U Ram Mounts Motorcycle Reservoir Cover SIDE BALL (SEE SCHEMATIC)

RAM Mounts

  • $ 19.49


RAM-B-346U Ram Mounts Motorcycle Reservoir Cover SIDE BALL (SEE SCHEMATIC)

*** IMPORTANT NOTE: Please see the schematic (third photo) and measure before purchasing. Absolutely no refunds or exchanges for failure to measure ahead of time, no exceptions ***

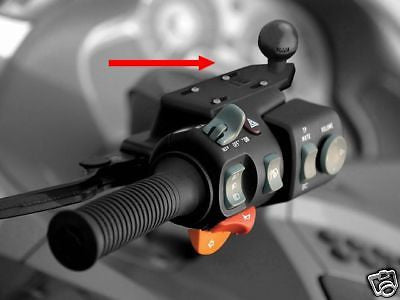

The RAM-Mounts model RAM-B-346U Motorcycle reservoir cover SIDE BALL is a universal reservoir cover that easily attaches to most master brake cylinders. Add a RAM-B-201 or RAP-B-201 arm plus a mount for your favorite device for the ultimate in rugged mobility. This is the SIDE MOUNT version.

FEATURES



Fits over your motorcycle's existing brake/clutch reservoir cover; includes set of M4 x 35, M4 x 30, and M4 x 20 screws

Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Backed by a lifetime warranty



PRODUCT INFORMATION

OVERVIEW

The RAM-B-346U base fits cleanly over your existing brake/clutch reservoir cover with the B size 1" rubber ball offset. Made of die cast aluminum with an overmolded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. The mount is NOT an additional reservoir cover, but instead a plate that mounts above the cover using the screw holes and longer screws of the cover. The kit includes three sets of screws of differing lengths. The center two slots are 2 7/16" center to center and are just under a .5" long. This mount is not compatible with the 2016 BMW R1200RT.

HARDWARE INCLUDED

(4) M4 x 20mm Machine Screws

(4) M4 x 30mm Machine Screws

(4) M4 x 35mm Machine Screws

(4) M4 Flat Washers

(4) .188" Nylon Spacers

HOLE PATTERN

See Drawing

PLATE SIZE

See Drawing

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

2 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.253 lbs.



*** IMPORTANT NOTE: Please see the schematic (third photo) and measure before purchasing. Absolutely no refunds or exchanges for failure to measure ahead of time, no exceptions ***



VERIFIED CUSTOMER EXPERIENCE NOTES:

This mount is NOT compatible with the 2016 BMW R1200RT

This mount is NOT compatible with the 2007 Suzuki Burgman


Powder-coated Marine grade aluminum. This product is packaged in a poly bag. We're a RAM-Mounts authorized dealer.
