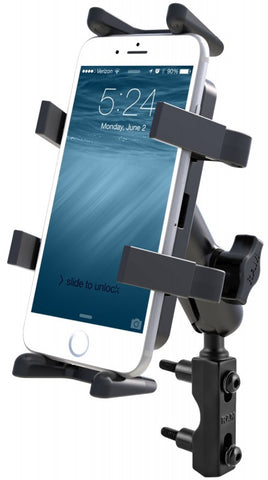

RAM-B-174-UN4U RAM Mounts Combination Brake/Clutch Reservoir U-Bolt Mount with Universal Finger-Grip Cradle
RAM Mounts 793442910524
RAM-B-174-UN4U RAM Mounts Combination Brake/Clutch Reservoir U-Bolt Mount with Universal Finger-Grip™ Cradle
Minimum with Top and Bottom Plates: 5.25"
Maximum with Top and Bottom Plates: 6.0"
The top and bottom plates can be removed for larger devices.

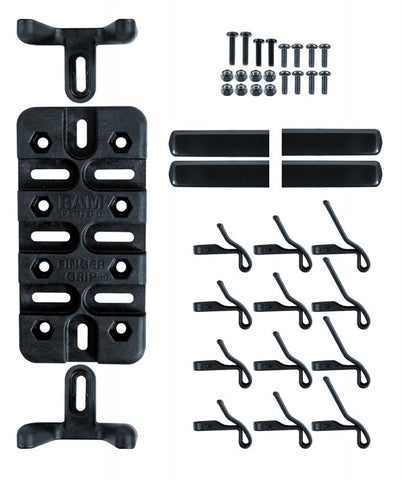

Spine Plate Dimensions:
2.5W x 5.0H"
Using Short Arm Side Clamps:
Maximum Depth: 0.75"
Minimum Width: 1.25"
Maximum Width: 3.0"
Using Medium Arm Side Clamps:
Maximum Depth: 1.25"
Minimum Width: 1.5"
Maximum Width: 3.5"
Using Long Arm Side Clamps:
Maximum Depth: 1.6"
Minimum Width: 2.25"
Maximum Width: 3.5"

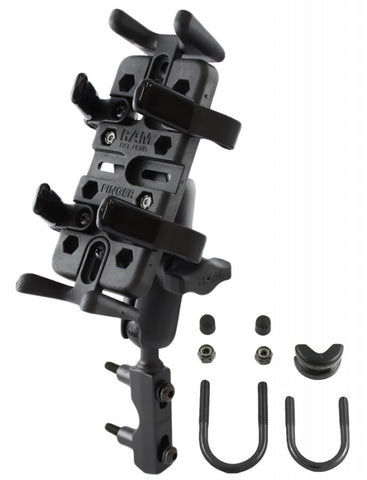

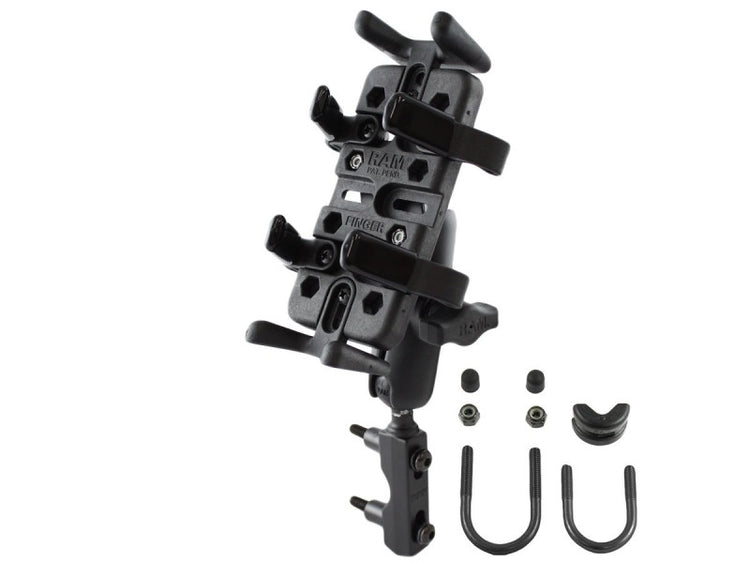

Included with Purchase:
(1 qty) Universal Finger Grip™ cradle
(1 qty) Base/ball adaptor (attaches directly to cradle)
(1 qty) Standard size double socket arm
(1 qty) Mounting base (mounts to either brake/clutch reservoir or rail/handlebar)
Hardware for mounting to either brake/clutch reservoir or rail/handlebar
High Strength Composite & Powder Coated Marine Grade Aluminum
1" Rubber Ball "B" Size
The "U" in the part number reflects product packaged in poly bag. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
Brake/Clutch Reservoir Base Assembly Instructions
