RAM-B-166-UN4U RAM Finger-Grip™ Universal Mount with RAM® Twist-Lock™ Suction Cup Base
RAM-B-166-UN4U RAM Finger-Grip™ Universal Mount with RAM® Twist-Lock™ Suction Cup Base
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
BE SURE OT MEASURE YOUR DEVICE AND COMPARE WITH THE CRADLE SPECIFICATIONS GIVEN BELOW BEFORE PURCHASING.
ELECTRONICS DEVICES SHOWN IN PHOTOS ARE NOT INCLUDED.
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"

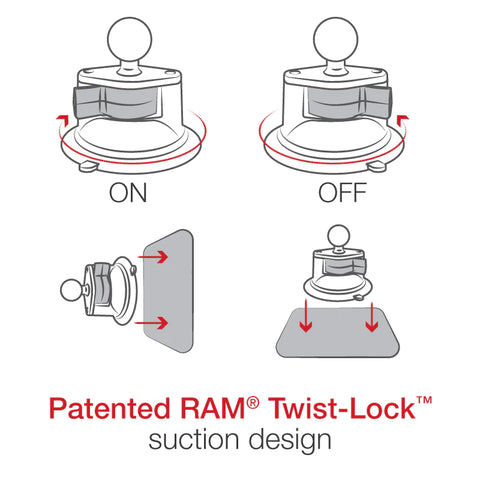

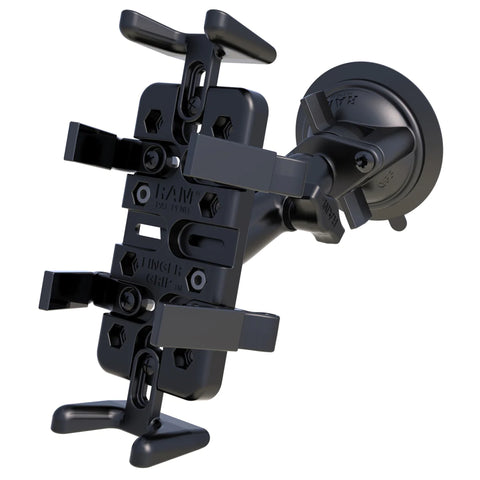

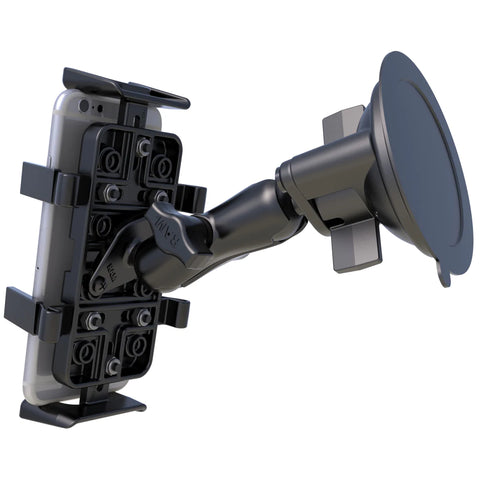

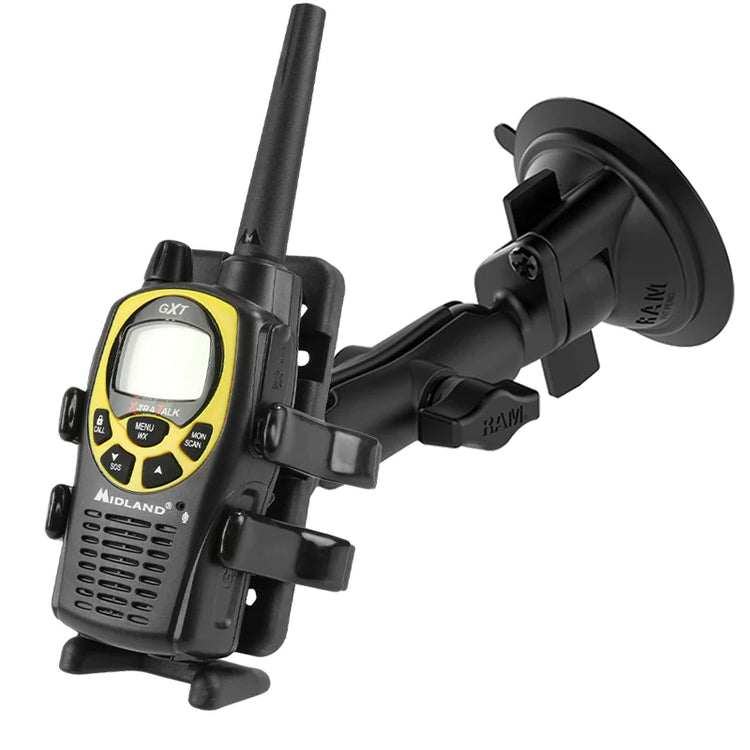

The RAM-B-166-UN4U consists of a 3.3" diameter suction cup twist lock base, double socket arm and universal Finger Grip™ cradle. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The universal Finger Grip™ cradle is designed to hold a large amount of cell phones and electronic devices.

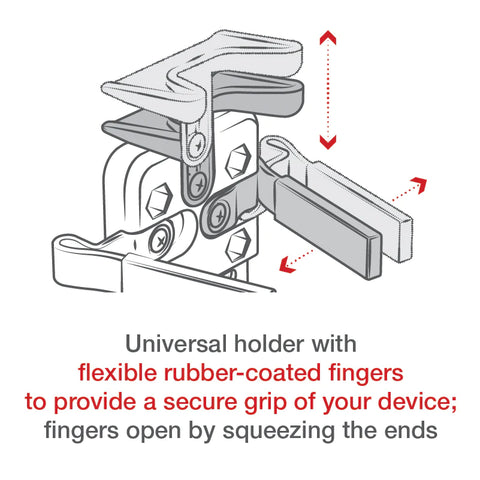

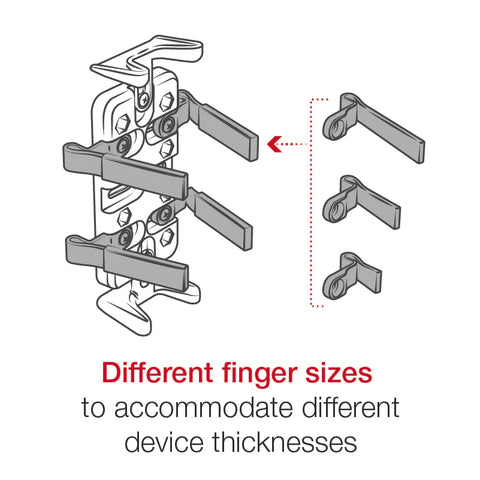

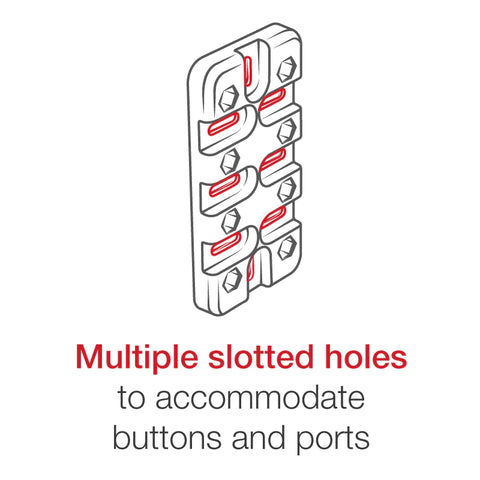

The cradle comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount.
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
SUCTION SIZE
3.3" Diameter
SOCKET TO SOCKET LENGTH
3"
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
1.09 lb
