RAM-B-166-UN12W RAM Mounts Tough-Charge™ Waterproof Wireless Charging Suction Cup Mount

RAM Mounts

  • $ 119.49
  • Save $ 14


RAM-B-166-UN12W RAM Mounts Tough-Charge™ Waterproof Wireless Charging Suction Cup Mount

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

Compatible devices:

  • Apple
  • iPhone 11
  • iPhone 11 Pro
  • iPhone 11 Pro Max
  • iPhone 8
  • iPhone 8 Plus
  • iPhone X
  • iPhone Xr
  • iPhone Xs
  • iPhone Xs Max
  • Blackberry
  • Evolve X
  • Google
  • Pixel 3
  • Pixel 3 XL
  • Pixel 4
  • Pixel 4 XL
  • Huawei
  • Mate 20 Pro
  • P30 Pro
  • LG
  • G6
  • G6+
  • G7 ThinQ
  • G8 ThinQ
  • G8S ThinQ
  • V30
  • V35 ThinQ
  • V40 ThinQ
  • V50 ThinQ
  • Nokia
  • 8 Sirocco
  • 9 PureView
  • Panasonic
  • Eluga X1 Pro
  • Razer
  • Phone 2
  • Samsung
  • Galaxy Note 10
  • Galaxy Note 10 Plus
  • Galaxy Note 5
  • Galaxy Note 8
  • Galaxy Note 9
  • Galaxy S10
  • Galaxy S10 5G
  • Galaxy S10+
  • Galaxy S10e
  • Galaxy S6
  • Galaxy S6 Edge
  • Galaxy S6 Edge+
  • Galaxy S7
  • Galaxy S7 Active
  • Galaxy S7 Edge
  • Galaxy S8
  • Galaxy S8+
  • Galaxy S9
  • Galaxy S9+
  • Sony
  • Xperia XZ2
  • Xperia XZ2 Compact
  • Xperia XZ3
  • Xiaomi
  • Mi 9
  • Mi 9 Explorer
  • Mi Mix 2S
  • Mi Mix 3
  • ZTE
  • Axon 10 Pro
  • Axon 9 Pro

FEATURES

  • Waterproof Qi wireless phone charging cradle features spring-loaded RAM X-Grip technology and 10W maximum output

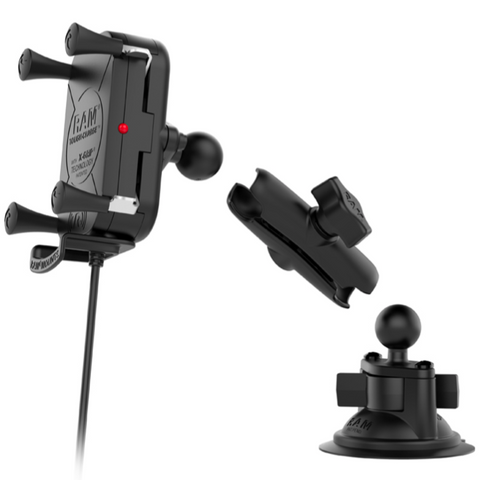

  • Kit for vehicles includes wireless cradle, B size diamond ball base, medium double socket arm, and RAM Twist-Lock suction cup
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM Mounts backed by lifetime warranty, RAM electronics backed by 1-year warranty

OVERVIEW

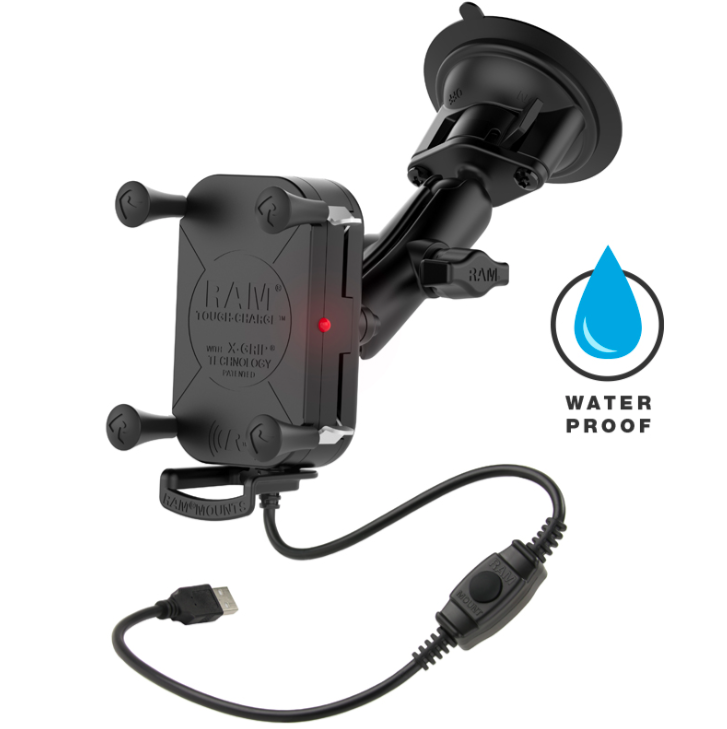

The RAM® Tough-Charge with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms.

This Qi wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge with X-Grip® Technology wireless charging suction cup kit includes a B size diamond base featuring a 1” rubber ball, medium length double socket arm, and RAM® Twist-Lock suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

HARDWARE INCLUDED

(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(4) Small zip ties
(2) Large zip ties


HOLDER DIMENSIONS

Width Range: 2.375" - 3.25"
Depth Range: .875" max


SUCTION SIZE

3.3" Diameter


SOCKET-TO-SOCKET LENGTH

3"


BALL/SOCKET SIZE

B Size (1")


WEIGHT CAPACITY

2 lbs


MATERIALS

Marine-grade aluminum
High strength composite
Stainless steel


PACKAGING TYPE

Retail Box


POWER SPECIFICATIONS

Input Power:5V-2A; 9V-1.67A
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Transmitting Distance: 5-8mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
QI Compatible
Compatible with QC2.0/QC3.0 power supplies

OUTPUT CONNECTOR TYPE

USB Type-A Male


INPUT CABLE LENGTH

20" with optional 1.2M extension cable


COMPLIANCE

Over current protection, short circuit protection and over temperature protection



CERTIFICATIONS

FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant


WARRANTY STATUS

1 year warranty


THIS PRODUCT SHIPS TO THE UPPER 48 UNITED STATES ONLY (NO INTERNATIONAL SHIPPING)
