RAM-B-138U-A RAM Mounts SHORT ARM Double Ball Drill-Down Mount with Diamond Plate
RAM-B-138U-A RAM Mounts SHORT ARM Double Ball Drill-Down Mount with Diamond Plate
FEATURES
- Drill-down mounting solution; diamond plate features AMPS hole pattern for attachment to compatible device holders
- Includes round ball base, diamond ball base, and B size short length double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
OVERVIEW

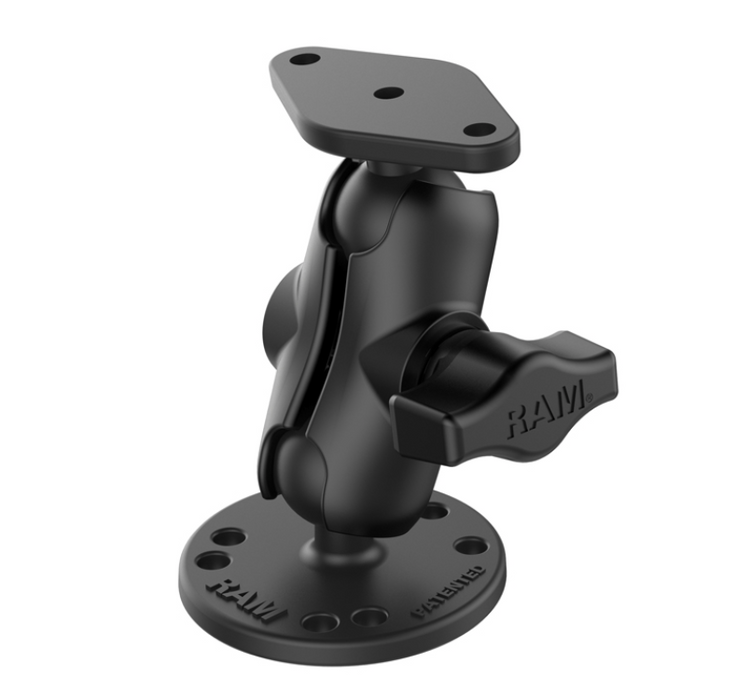

The RAM-B-138U-A consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, SHORT double socket arm and diamond base adapter. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
PRODUCT DIMENSIONS
Overall Height: 3.75"
SOCKET-TO-SOCKET LENGTH
1.75"
HOLE PATTERN
Diamond Plate: 2-Hole AMPS: 1.912"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
Round Plate: 2.5" Diameter
Diamond Plate: 2.43" x 1.31"
Diamond Plate: 2.43" x 1.31"
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.4 lbs.
