RAM-B-111U RAM Mounts 1" Diameter Ball Mount with 6.25" X 2" Rectangle Base AMPS

RAM-B-111U Ram Mounts 1" Diameter Ball Mount with 6.25" X 2" Rectangle Base & 2.5" Round Base (AMPs Hole Pattern)

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

RAM-B-111U RAM Mounts 1" B-Size LIGHT DUTY Diameter Ball Mount with 6.25" X 2" Rectangle Base & 2.5" Round Base (AMPs Hole Pattern)

This item features a "B" sized 1" ball and is intended for lighter-duty use. For heavier duty, see the RAM-111U.

Q: Will this fit my.....?

A: See drawing of plate.

OVERVIEW

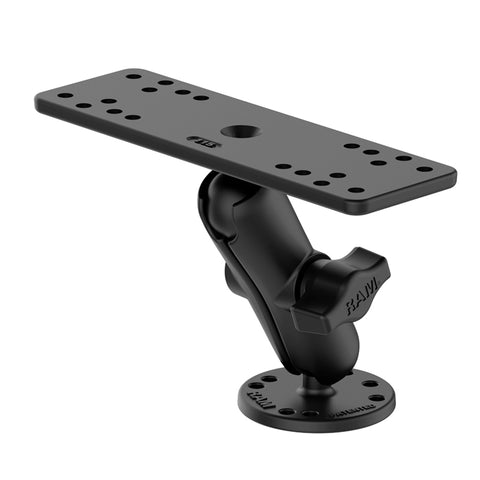

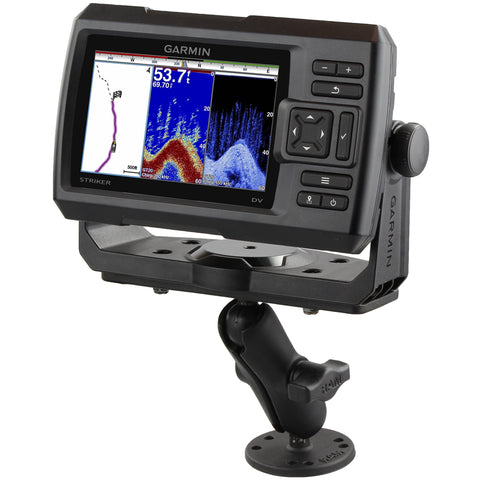

The RAM-B-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1" B size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1" B size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.

PRODUCT DIMENSIONS

Overall Height: 5"

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

3-Hole 120-Degree: 1.812" Diameter

See Drawing



PLATE SIZE

Top Plate: 6.25" x 2.5"

Bottom Plate: 2.5" Diameter



BALL/SOCKET SIZE

B Size (1")



WEIGHT CAPACITY

2 lbs



MATERIALS

Marine-grade aluminum



PACKAGING TYPE

Poly Bag



WEIGHT

0.71 lbs.



ADDITIONAL INFORMATION

This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Will this fit my.....? See drawing of plate.

INTERNATIONAL BUYERS, YOU ARE RESPONSIBLE FOR ALL FEES AND TARIFFS.

WE SHIP WORLDWIDE!

ASK US ABOUT COMBINED SHIPPING for multiple items purchased in the same transaction!

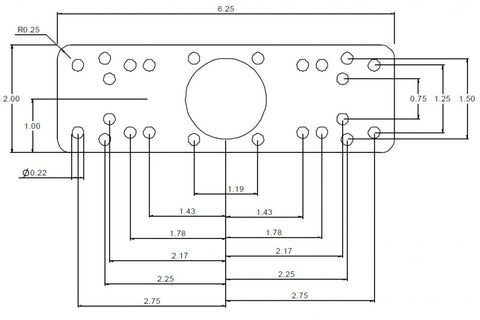

Plate hole pattern drawing:

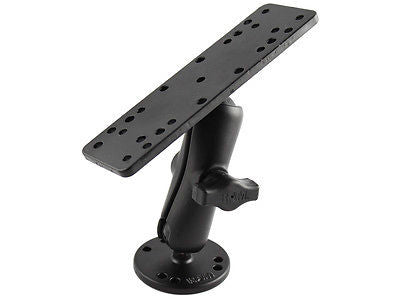

The RAM-B-111U consists of a double socket arm, 2.5" diameter round base and 6.25" x 2" rectangle base. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Overall Height: 5"

Weight Capacity: 5 lbs.

Material: Powder Coated Marine Grade Aluminum

Ball Size: 1" Rubber Ball "B" Size

Note: The "U" in the part number reflects product packaged in poly bag.

Weight: 0.71 lbs.
