RAM-B-111-238U RAM Mounts Marine Electronic Mount with Diamond Base (SEE SPECS)

RAM-B-111-238U RAM Mounts Marine Electronic Mount with Diamond Base (SEE SPECS)

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.

COMPATIBLE DEVICES:

Garmin

GPSMAP 162
GPSMAP 168
GPSMAP 175
GPSMAP 180
GPSMAP 180C
GPSMAP 182
GPSMAP 185
GPSMAP 188
GPSMAP 232
GPSMAP 238
Striker 5 Series
Striker Plus 5cv

OVERVIEW

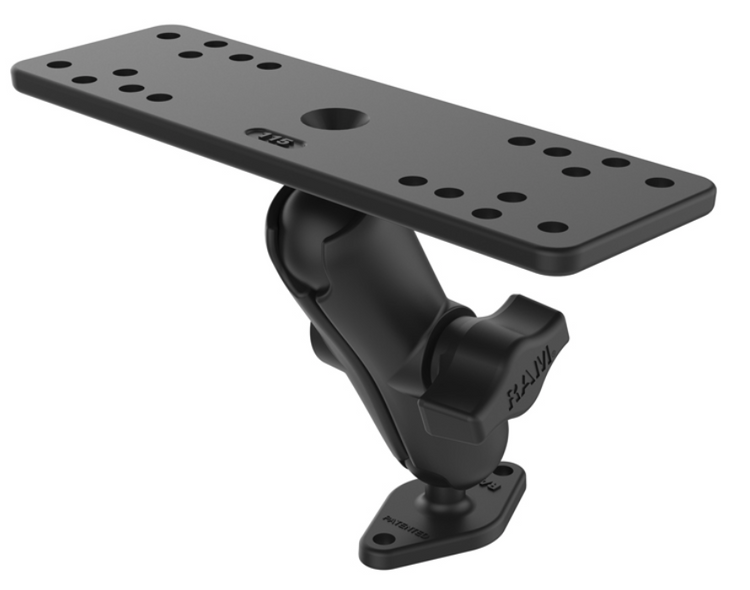

The RAM-B-111-238U consists of a double socket arm, 2.43" x 1.31" diamond base and 6.25" x 2" rectangle base. The diamond base contains two holes 1.912" from center to center, positioned at both ends of the base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.


PRODUCT DIMENSIONS
Overall Height: 5"


SOCKET-TO-SOCKET LENGTH
3"


HOLE PATTERN
2-Hole AMPS: 1.912"
See Drawing


PLATE SIZE
Top Plate: 6.25" x 2.5"
Bottom Plate: 2.43" x 1.31"


BALL/SOCKET SIZE
B Size (1")


WEIGHT CAPACITY
2 lbs


MATERIALS
Marine-grade aluminum


PACKAGING TYPE
Poly Bag


WEIGHT
0.66 lbs.
