RAM-200-1U RAM Mounts Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls

RAM Mounts

  • $ 31.49
  • Save $ 2.50


RAM Mounts 793442020018

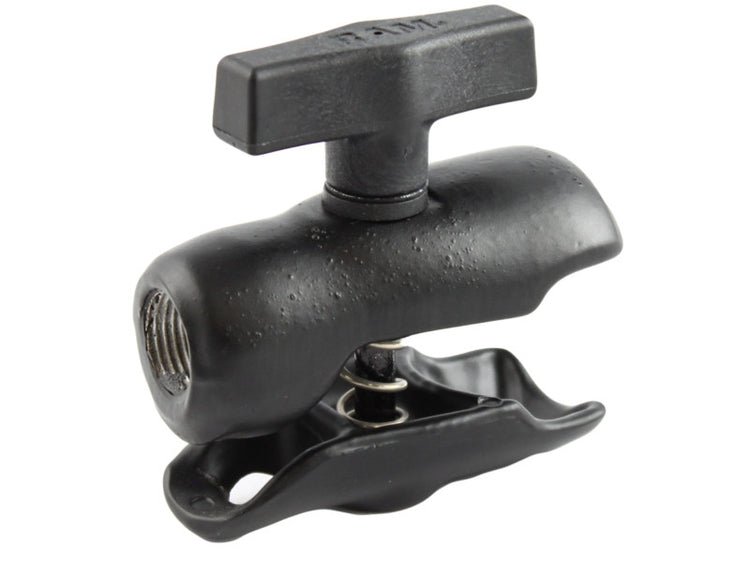

RAM-200-1U RAM Mounts Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls

SPECIAL NOTE: THIS PRODUCT FEATURES A 1.5-INCH C-SIZED SOCKET. IT WILL NOT FIT A RAM-MOUNTS 1-INCH B-SIZED BALL. FOR B-SIZED VERSION, PLEASE SEE THE RAM-B-200-1U

The RAM-200-1U includes a single socket that will accommodate 1.5" balls and a 1/2" NPT Female thread. This part will connect to 1/2" NPT Male threads, including RAM-PA82XX rigid arms.

Material:
Powder Coated Marine Grade AluminumBall Size:
1.5" Rubber Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag.

NPT Thread and Pipe Sizing:
NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown in the table below:

NPT Size (NPS) Pipe Outer Dia. (OD) Threads per inch
1/4" 0.540" 18
1/2" 0.840" 14
1" 1.315" 11.5

Weight:
0.63 lbs.

Product video:

https://www.youtube.com/watch?v=6HCy2ho0BBg
