RAM-149Z-HC1U RAM Mounts Handi-Case™ with U-Bolt Mount
RAM-149Z-HC1U RAM Mounts Handi-Case™ with U-Bolt Mount
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

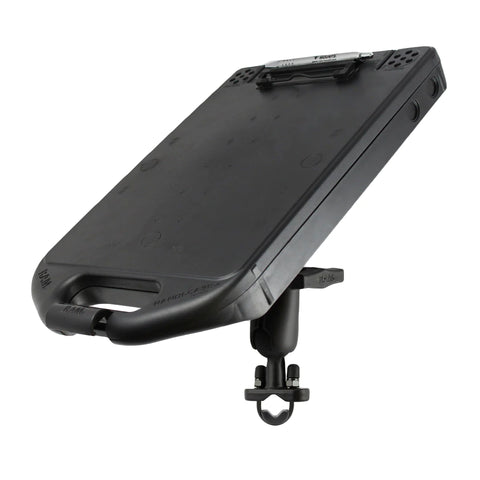

The RAM-149Z-HC1U consists of a zinc coated u-bolt base, double socket arm, 2.5" diameter round base and Rugged Handi-Case™. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

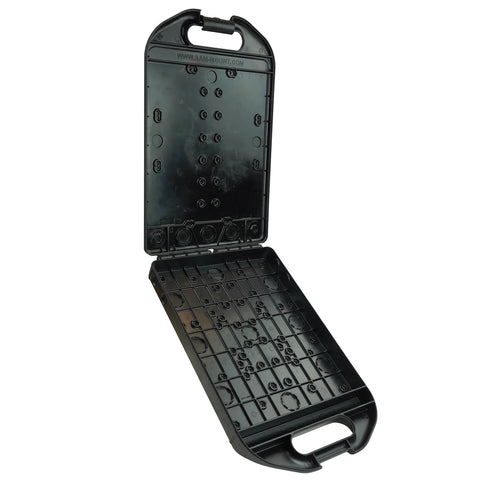

The RAM Handi-Case™ is capable of doing so many tasks it will astound you. When a briefcase is too much but a notepad, is not enough, the Handi-Case™ is exactly what you need. Beyond just a writing surface, you get document storage, tool holder, pen and pencil storage, and of course, RAM's rugged construction. No matter where the job takes you, the RAM Handi-Case™ is ready to multi task. For any professional on the go this is the tool to keep you organized at home, at the office, or on the go regardless of what you ride, drive, or fly.
HARDWARE INCLUDED
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
CLAMP RANGE
.5" - 1.25" diameter
SOCKET TO SOCKET LENGTH
4.66"
BALL SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
3.42 lb
