RAM-101U-2461 RAM Mounts Double Ball Mount with 75x75mm VESA Plate
RAM-101U-2461 RAM Mounts Double Ball Mount with 75x75mm VESA Plate
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
THIS PRODUCT FEATURES THE C-SIZE 1.5-INCH BALL AND SOCKET CONFIGURATION.

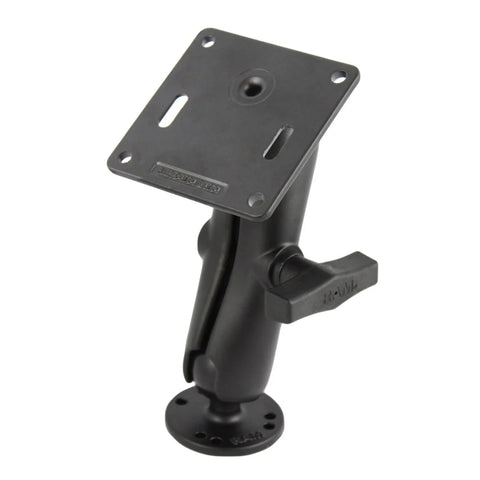

The RAM-101U-2461 consists of a 6 inch double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 3.625" square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
product dimensions
Overall Height: 7.35"
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size
VESA Plate: 3.625" x 3.625"
Round Plate: 2.5" Diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
1.33 lb
