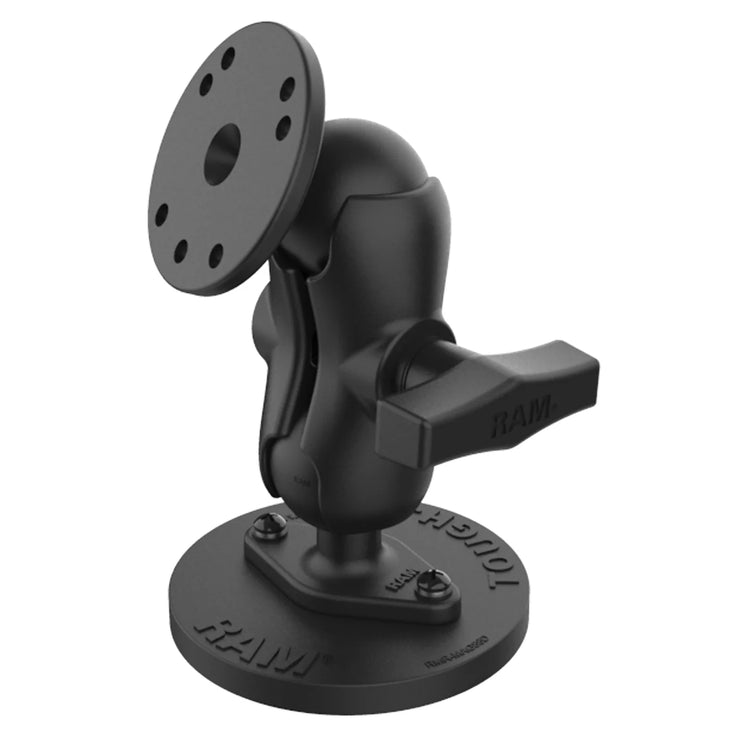

RAM-101-B-MAG88U RAM Tough-Mag™ Heavy Duty Magnetic Mount with Round Plate - Short

RAM Mounts

$ 115.49
Save $ 14

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.

PLEASE READ ALL SPECIFICATIONS BEFORE PURCHASING.

Overview

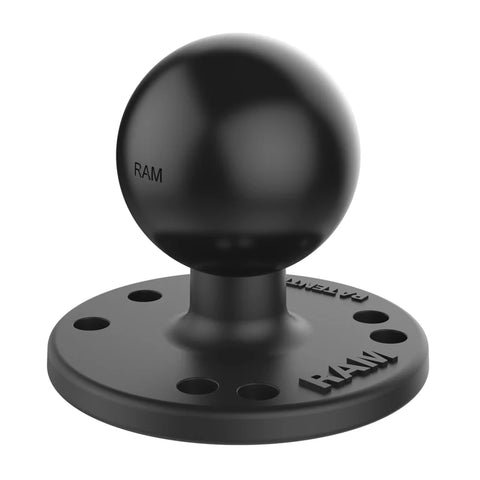

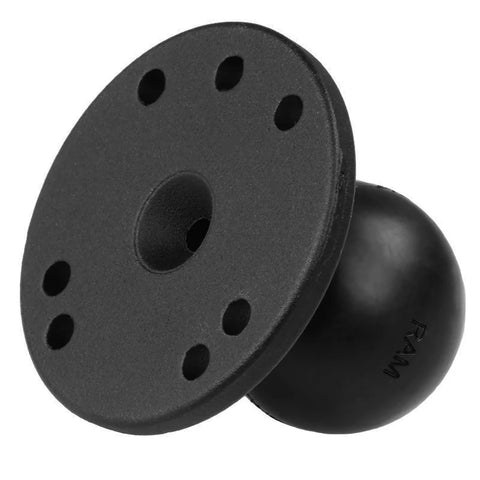

The RAM^® Tough-Mag^™ Heavy Duty Magnetic Mount with Round Plate - Short (RAM-101-B-MAG88U) features a short length double socket arm, one 2.5" diameter round base, and one RAM^® Tough-Mag^™ base. This heavy duty magnetic solution features C size components from our patented rubber ball and socket system, allowing the system to adjust at both ends of the socket arm. The rubber ball and socket technology allows for almost infinite adjustment to provide ideal viewing angles and dampens shock and vibration to extend the life of your device. The RAM^® Tough-Mag^™ features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Features

Magnetic or drill-down mounting solution; secure your device to one end and the other to your preferred surface

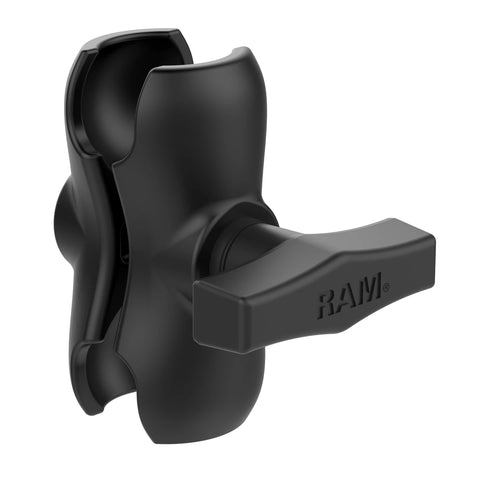

Includes one round ball base, one Tough-Mag^™ base, and one C size short length double socket arm; ball and socket technology allows for near-infinite adjustability

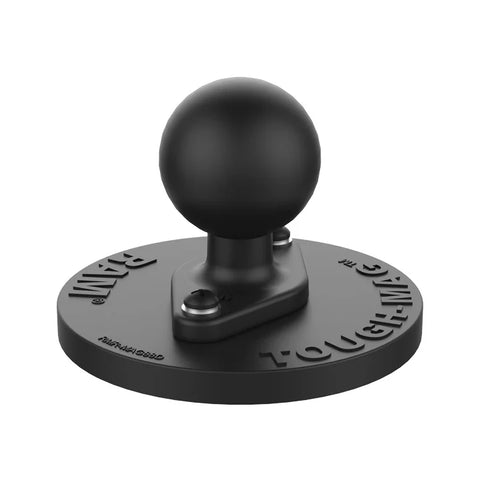

RAM^® Tough-Mag^™ 88mm base magnetizes to any ferrous metal surface
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Product dimensions:

Overall Height: 5.54"

Socket to socket length:

2.5"

Hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Plate size:

Top Plate: 2.5" Diameter
Magnetic Base: 3.46" Diameter

Ball size:

C Size (1.5")

Weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials:

Marine-grade aluminum
N52 Magnets (Qty 10)

Packaging type:

Poly Bag

Weight:

1.29 lb
