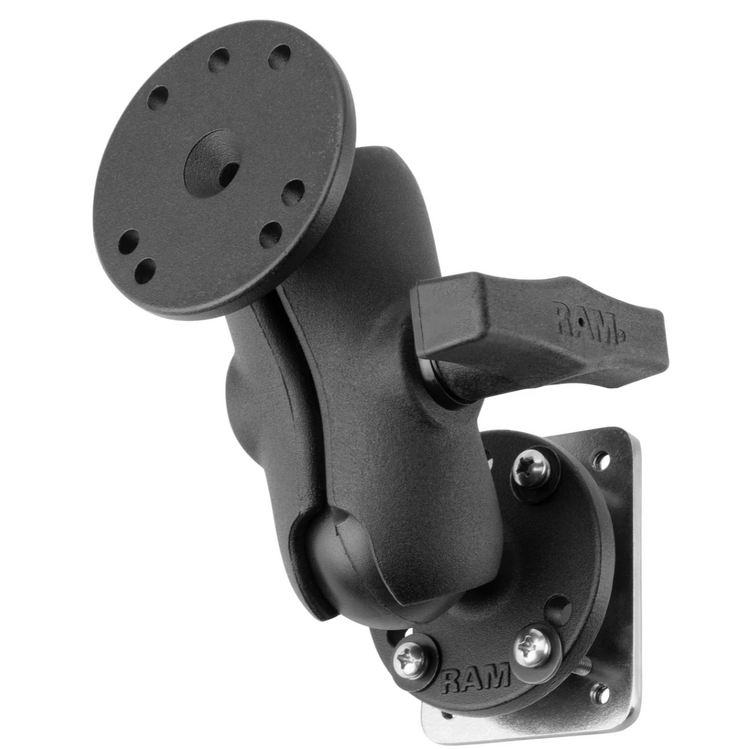

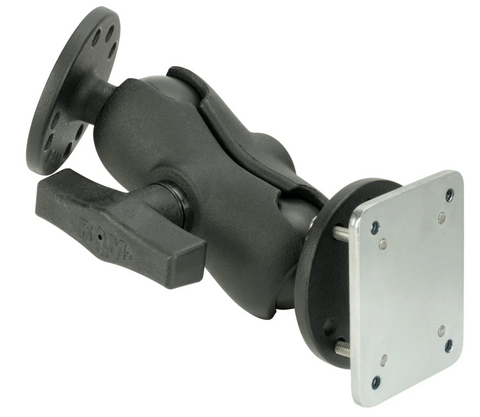

RAM-101-B-225B2U RAM Mounts Drill-Down Dashboard Mount with Backing Plate - C Size Short
RAM-101-B-225B2U RAM Mounts Drill-Down Dashboard Mount with Backing Plate - C Size Short
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
FEATURES
- Drill-down double ball mount with 2.10" x 2.60" steel backing plate that connects to RAM® components containing the universal AMPS hole pattern
- Includes C size 1.5" RAM® rubber ball and short length double socket arm; ball and socket technology allows for near-infinite adjustability
- Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
OVERVIEW
Meet your new go-to mount and component option for pairing any holder or dock with a dashboard drill-down mount. The RAM-101-B-225B2U consists of a C size short length double socket arm, two round 2.5" diameter round bases with the universal AMPS hole pattern, and one 2.10” x 2.60” steel backing plate (hardware included). RAM®'s patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.
HARDWARE INCLUDED
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Machine Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
PRODUCT DIMENSIONS
Overall Height: 5.225"
SOCKET TO SOCKET LENGTH
2.5"
HOLE PATTERN
Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Marine-grade aluminum
Steel
PACKAGING TYPE
Poly Bag
WEIGHT
1.16 lb
