Gamber Wide Body Console with Cup Holder, Pocket and Armrest Kit 7170-0567-01 - Synergy Mounting Systems

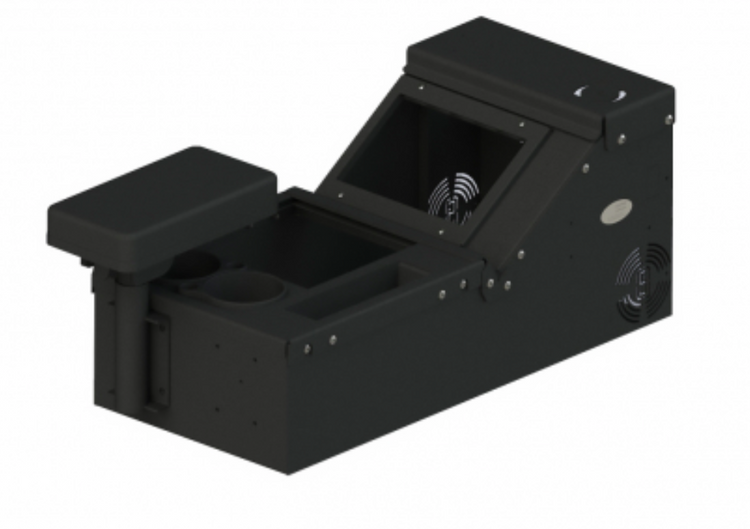

Gamber Wide Body Console with Cup Holder, Pocket and Armrest Kit 7170-0567-01

Gamber-Johnson

  • $ 1,142.00


Gamber Wide Body Console with Cup Holder, Pocket and Armrest Kit 7170-0567-01

GAMBER JOHNSON 7170-0567-01 Kit: Wide Body Console with Cupholder, Pocket and…

  • Low profile, universal console with sloped front mounting area
  • Designed to work with top plate/tunnel plate and leg kits.
  • Two 12 volt plug knock-outs, located on passenger side wall of console box and one knock-out for switches, dual USB power ports, battery voltage display, data / mic jack or USB / AUX input module extension.
  • PEM’s for mounting mic clip (item no.7120-0723) on both sides.
  • Side vented openings for air flow or mounting a speaker inside the console box
  • PEM’s on back of console box for mounting an external cup holder (item no. 7160-0847) and armrest (item no. 7160-0429) or printer armrest (item no. 7160-0430).
  • Front plate of console (underneath dash area) has placement for a Power Distribution Block or Lind Shut-down Timer using pre-configured mounted holes.
  • Computer can be center mounted either off-set towards the passenger on the “smiley face pattern” or on the 3-bolt pattern closer to the driver for easy articulation access
  • Ships fully assembled with 3 faceplates and 3 filler panels.
  • Limited lifetime warranty.

Kit includes:

  • Wide body console box (item no. 7160-0894)
  • Internal cup holder (item no. 7160-0846)
  • External break-away armrest (item no. 7160-0524)
  • 2-inch wide pocket (item no. 7160-0924)

Weight:

32.45 lbs. / 14.7 kg

Dimensions:

Height: 10.88" / 27.6 cm
Width: 11.83" / 30.1 cm
Depth: 26.75" / 26.8 cm

Features:

Horizontal, low profile section:

  • Has a consistent mounting space height of 11.5". The included cup holder uses 4.5" (11.43 cm) of that space.
  • Designed to house full-sized devices and accessories.
  • Has additional side mounting area of 2-inch that will accommodate the pocket (item no. 7160-0924), 2-inch faceplate for switches or power ports or a smaller device.

Vertical, angled sections:

  • Accommodates 5" of mounting space for one to two full-sized devices or faceplates.
  • Two 12-volt plug knockouts, located on top passenger side and two knockouts for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension.

Other Features:

  • Low profile, universal console with sloped front mounting area.
  • Designed to work with top plate/tunnel plate and leg kits.
  • Two 12 volt plug knockouts, located on passenger side wall of console box and one knockout for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension.
  • PEM’s for mounting mic clip (item no. 7120-0723) on both sides.
  • Side vented openings for air flow or mounting a speaker inside the console box.
  • PEM’s on back of console box for mounting external cup holder (item no. 7160-0847) and armrest (7160-0429) or printer armrest (item no. 7160-0430).
  • Front plate of console underneath the dash area has placement for a power distribution block or Lind shut-down timer using pre-configured mounted holes.
  • Computer can be center mounted either off-set towards the passenger on the “smiley face pattern” or on the 3-bolt pattern closer to the driver for easy articulation access.
  • Fully welded construction for long term product life span.
  • 3 faceplates and 3 filler panels are included.
  • Box ships fully assembled (except for accessories).
