RAM-B-166-C-202U RAM Mounts Twist-Lock™ Suction Cup Double Ball Mount with Round Plate - Long

RAM Mounts

$ 54.49
Save $ 7

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.

PLEASE READ ALL SPECIFICATIONS BEFORE PURCHASING.

THIS KIT FEATURES THE RAM B-SIZED 1-INCH BALL AND SOCKET CONFIGURATION.

Overview

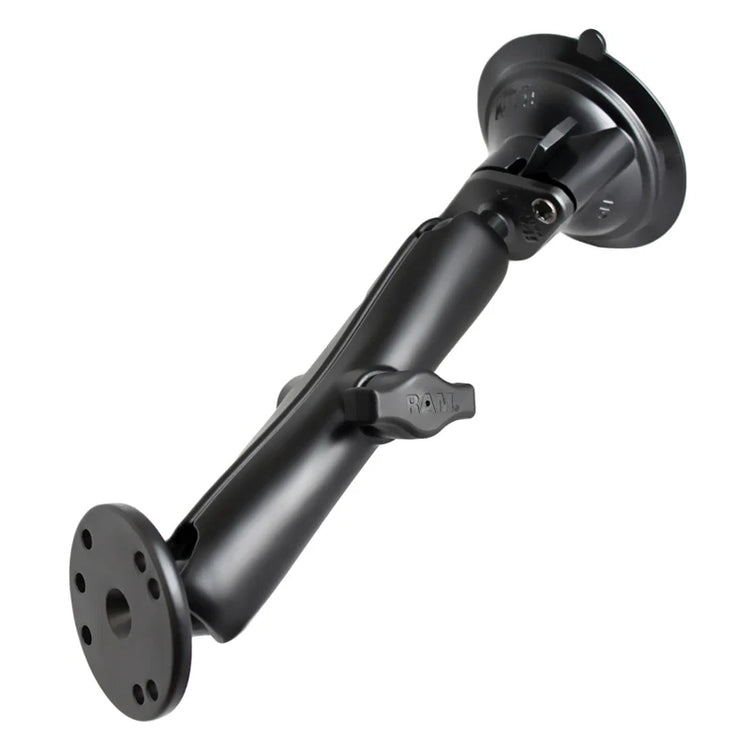

The RAM-B-166-C-202U consists of a 3.3" suction cup twist lock base, LONG double socket arm and round base that contains the universal AMPs hole pattern. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adapter will connect to most RAM cradles and 3rd party cradles.

Features

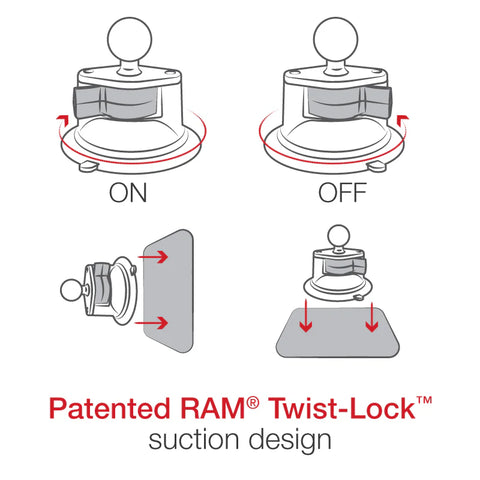

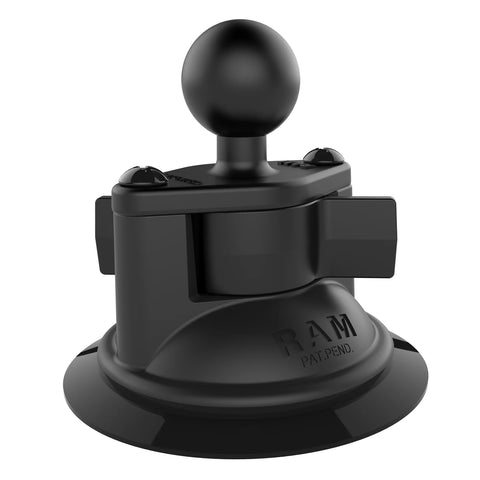

RAM^® Twist-Lock^™ suction cup base is ideal for vehicle windshields and other nonporous surfaces

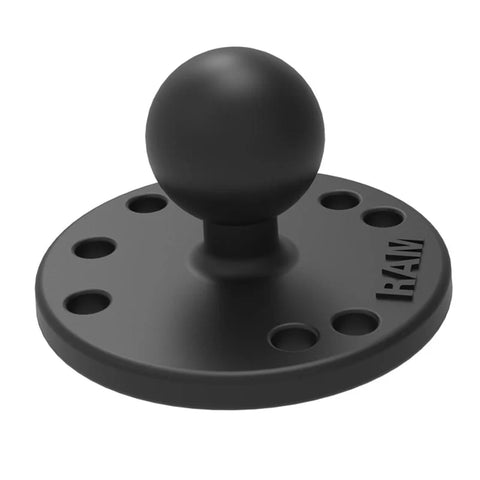

Includes B size long length RAM^® double socket arm and 2.5" round base with B size 1" rubber ball; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty* (SEE BELOW).

Hardware included:

Assembly Hardware

Product dimensions:

Overall Height: 9"

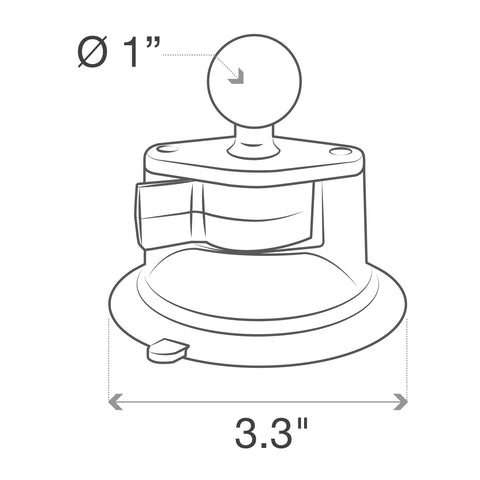

Suction size:

3.3" Diameter

Socket to socket length:

5.31"

Hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

Ball size:

B Size (1")

Weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:

Marine-grade aluminum
High strength composite

Packaging type:

Poly Bag

Weight:

0.9 lb

Additional Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty.
