RAP-B-111B-354-TRA1U RAM Track Ball™ Composite Universal Marine Electronic Mount
RAP-B-111B-354-TRA1U RAM Track Ball™ Composite Universal Marine Electronic Mount
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
FEATURES B-SIZE 1-INCH BALL AND SOCKET CONFIGURATION
COMPATIBLE DEVICES:
GARMIN:
GPSMAP 162
GPSMAP 168
GPSMAP 175
GPSMAP 180
GPSMAP 180C
GPSMAP 182
GPSMAP 185
GPSMAP 188
GPSMAP 232
GPSMAP 238
Striker 5 Series
Striker Plus 5cv
Striker Vivid 5cv

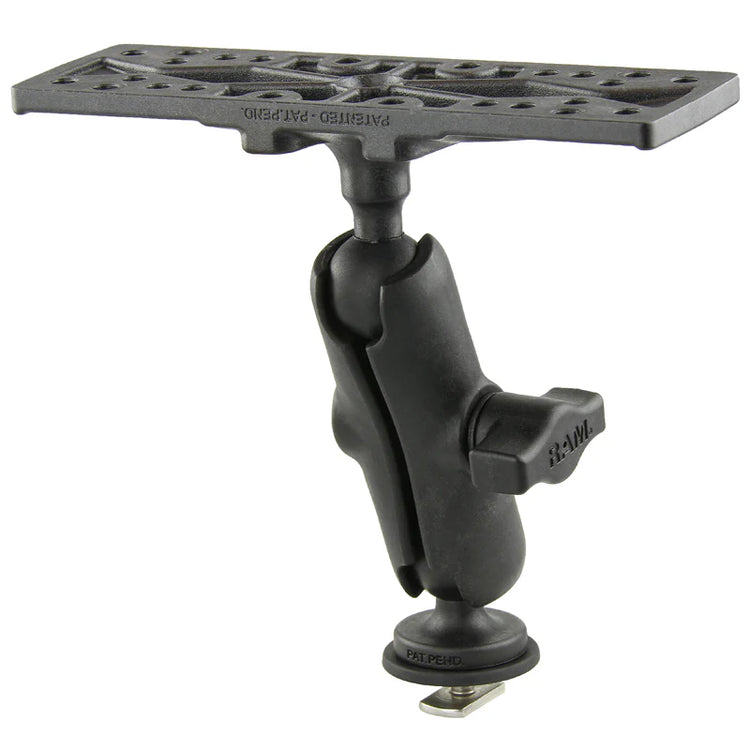

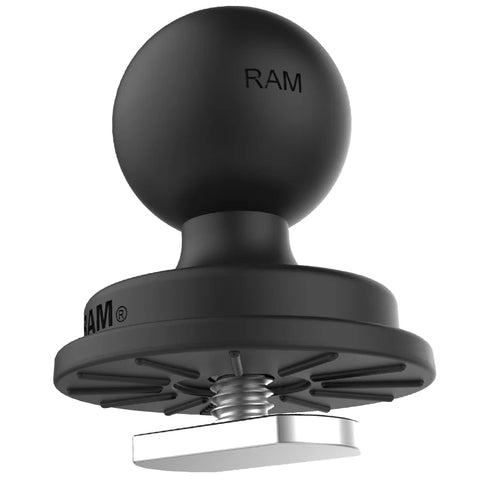

The RAP-B-111B-354-TRA1U consists of a Track Ball™ base, composite double socket arm and 6.25" x 2" rectangle plate. The 6.25" x 2" rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. The Track Ball™ base can connect to virtually any track system including the RAM Tough-Track™.
Hardware included
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
(1) 1/4"-20 x 7/8" T-Bolt
Socket to socket length
3"
Plate size
6.25" x 2"
Ball size
B Size (1")
Weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Heavy-Duty Use: 1 lb
Materials
High strength composite
Packaging type
Poly Bag
Weight
0.55 lb
