RAM-109HU RAM Mounts Horizontal 6" Swing Arm Mount for Fishfinders & Plotters (SEE LIST)

RAM Mounts

  • $ 74.49
  • Save $ 9


RAM-109HU RAM Mounts Horizontal 6" Swing Arm Mount for Fishfinders & Plotters (SEE LIST)

COMPATIBLE DEVICES:

Garmin

echoMAP Chirp 72-95 Series

ECHOMAP Plus 72-97 Series

ECHOMAP UHD 62-95 Series

ECHOMAP Ultra 102sv

ECHOMAP Ultra 106sv

GPSMAP 722

GPSMAP 722xs

GPSMAP 723

GPSMAP 723xsv

GPSMAP 742

GPSMAP 742xs

GPSMAP 743

GPSMAP 743xsv

GPSMAP 8410

GPSMAP 8410xsv

GPSMAP 8412

GPSMAP 8412xsv

GPSMAP 8416

GPSMAP 8416xsv

GPSMAP 8610

GPSMAP 8610xsv

GPSMAP 8612

GPSMAP 8612xsv

GPSMAP 8616

GPSMAP 8616xsv

GPSMAP 922

GPSMAP 922xs

GPSMAP 923

GPSMAP 923xsv

GPSMAP 942

GPSMAP 942xs

GPSMAP 943

GPSMAP 943xsv

GPSMAP 1223

GPSMAP 1223xsv

GPSMAP 1243

GPSMAP 1243xsv

Striker Plus 5cv

Striker Vivid 5cv

Striker Plus 7cv

Striker Plus 7sv

Striker Vivid 5cv

Striker Vivid 7cv

Striker Vivid 7sv

Striker Plus 9sv

Striker Vivid 9sv

Fishfinders and GPS Chartplotters



Humminbird

Apex 13

Apex 16

Helix 8

Helix 9

Helix 10

Helix 12

Helix 15

Solix 15


Fishfinders and GPS Chartplotters

Lowrance:

Elite FS 7
HDS Carbon 7
HDS LIVE 7
HDS LIVE 9
HDS LIVE 12
HDS PRO 9
HDS PRO 10
HDS PRO 12
HDS PRO 16
Hook Reveal 7 Series
Hook Reveal 9 Series
HOOK-9
Fishfinders and GPS Chartplotters


Raymarine

Fishfinders and GPS Chartplotters

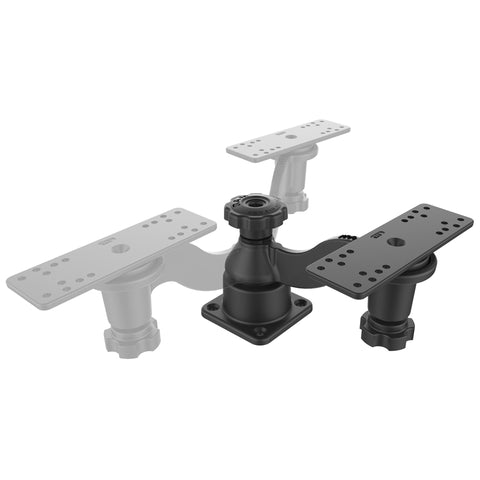

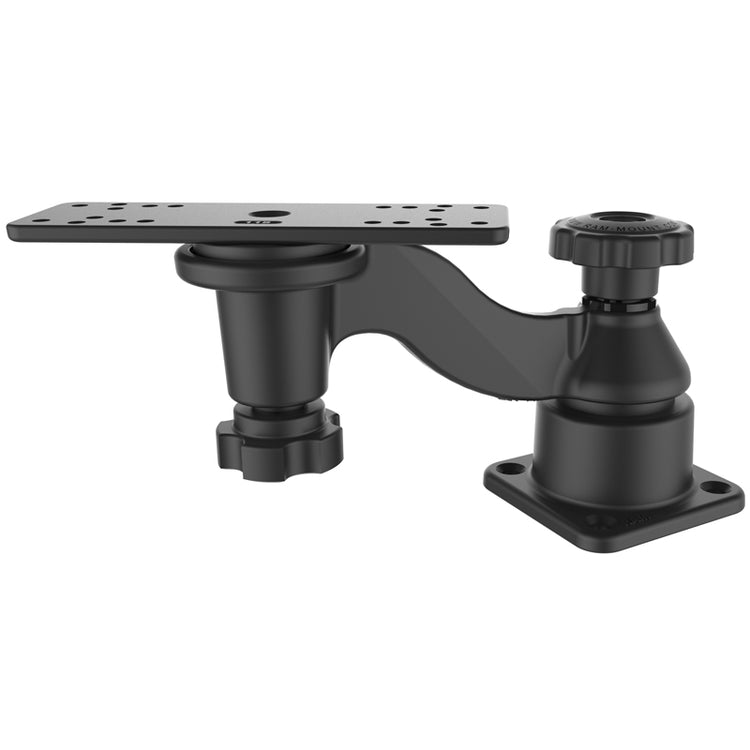

    The RAM single swing arm mount consists of a 6" long BENT swing arm mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

    Dimensions:
    • Center of knob to center of ball socket: 6"
    • Overall Length of swing arm assembly: 10.75"
    • Overall Height: 5.6"
    • Height from base to top of knob: 4.91"
    • Material: Powder Coated Marine Grade Aluminum
    • Note: The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
    • Weight: 2.09 lbs.

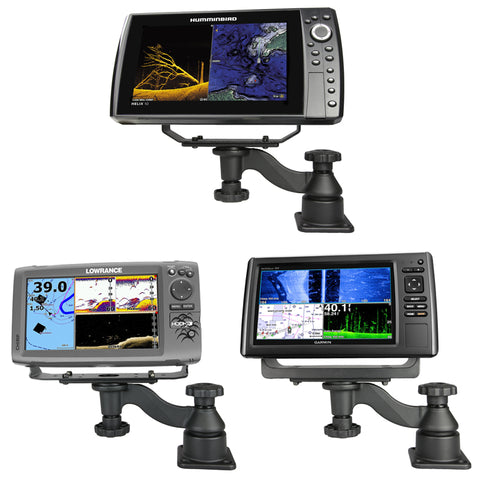

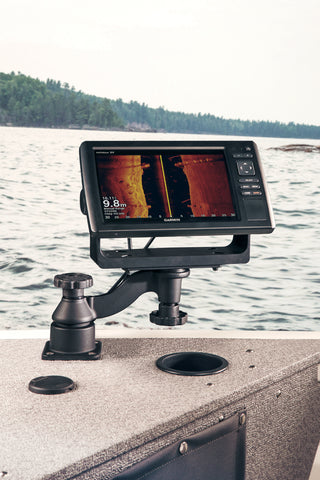

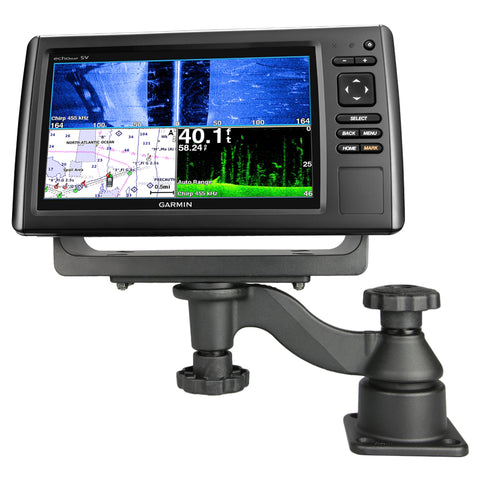

    NOTE: Electronics devices shown in photos are for display purposes only and are not included.
