RAM-GDS-CHARGE-V7CU RAM GDS® Modular 10-30V Hardwire Charger with Male USB Type-C
RAM-GDS-CHARGE-V7CU RAM GDS® Modular 10-30V Hardwire Charger with Male USB Type-C
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
PLEASE READ ALL SPECIFICATIONS BEFORE PURCHASING.
IMPORTANT NOTE: This charger will not support Power Delivery. For a Power Delivery version, see the RAM-GDS-CHARGE-V3C-3U.
Overview

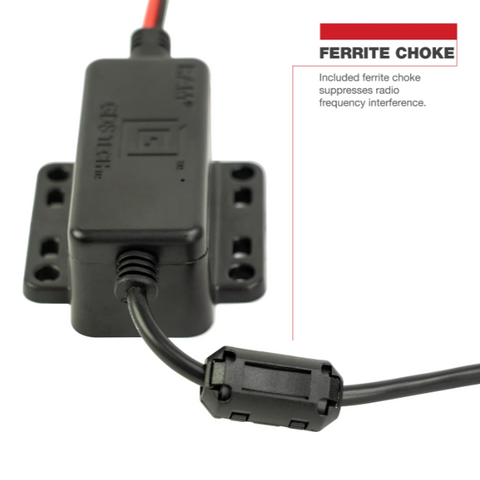

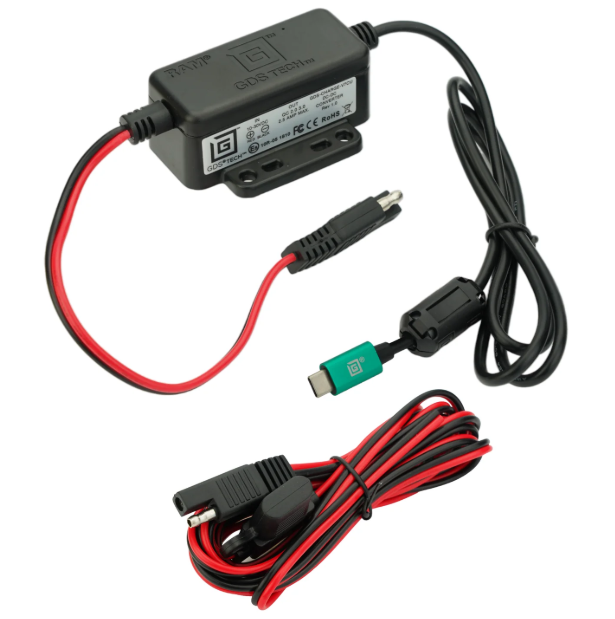

The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 9V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger does not support Power Delivery. Always Protected. Always Connected.®
Features
-
Hardwire charger includes USB Type-C male connection with input of 10-30VDC and output of 5.42 - 9VDC
-
When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
-
Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
-
Backed by a 3-year warranty
Packaging type:
Poly BagInput voltage:
10-30VDCOutput voltage:
5.42-9VDCOutput current:
2.5A maxInput connector:

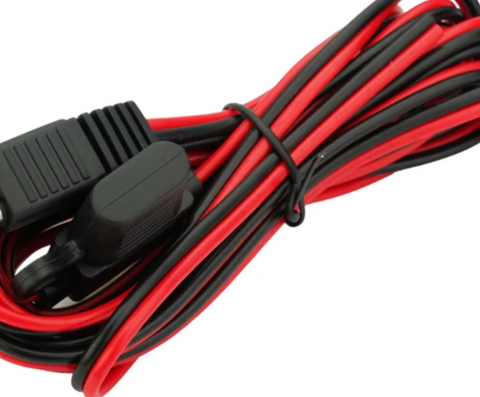

Bare WireInput cable length:
2.5 MetersOutput connector:
USB Type-C MaleOutput cable length:
1 MeterOperating temperature:
-10°C to +70°CStorage temperature:
-40°C to +70°CRegulatory:
Over Voltage ProtectionShort Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
Certifications:
CE CertificationE-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certification
Warranty:
3 year warranty
Weight:
0.45 lb
Additional Information:
