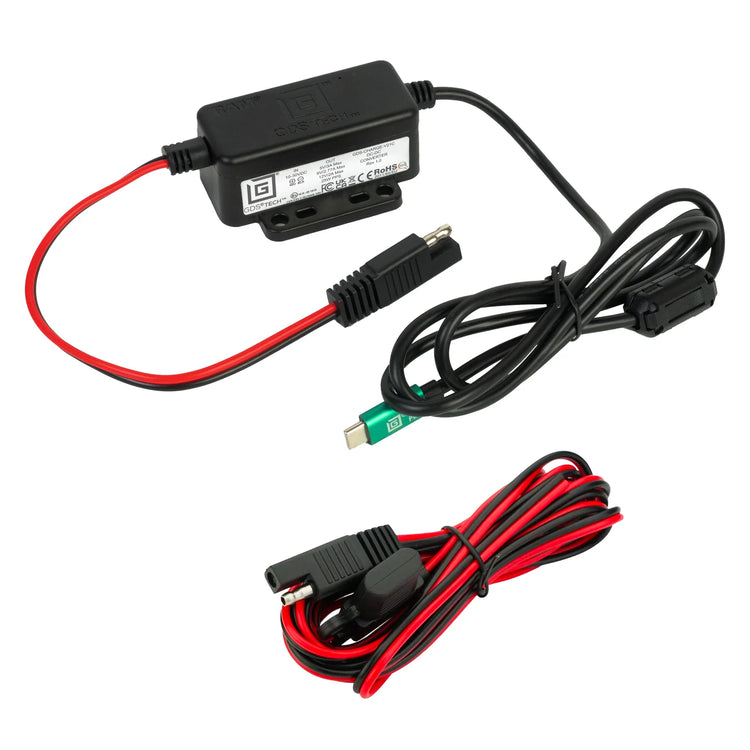

RAM-GDS-CHARGE-V21CU RAM GDS® Modular 10-30V Power Delivery (25W) Male USB-C Hardwire Charger
RAM Mounts RAM-GDS-CHARGE-V21CU GDS® Modular 10-30V Power Delivery (25W) Male USB-C Hardwire Charger
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
PLEASE READ ALL SPECIFICATIONS BEFORE PURCHASING.
Overview
The GDS® Modular 10-30V Power Delivery (25W) Male USB-C Hardwire Charger (RAM-GDS-CHARGE-V21CU) is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 12V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®
Features
-
Hardwire charger includes USB Type-C male connection with input of 10-30VDC and output of 5-12VDC
-
Supports Power Delivery
-
When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
-
Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
-
Backed by a 3-year warranty
Packaging type:
Poly Bag
Input voltage:
10-30VDC
Output voltage:
12VDC
Power output:
25W
Output current:
2.5A max
Input connector:
Bare Wire
Input cable length:
.2 Meters
Output connector:
USB Type-C Male
Output cable length:
1 Meter
Operating temperature:
-20°C to +70°C
Storage temperature:
-40°C to +85°C
Regulatory:
Over Voltage Protection
Over Current Protection
Short Circuit Protection
SAE J-1113-5a Load Dump (Transient Voltage)
WEEE Compliance
RoHS Compliance
Certifications:
FCC, CSA, CE, UKCA, RCM, e-Mark
Warranty:
3 year warranty
