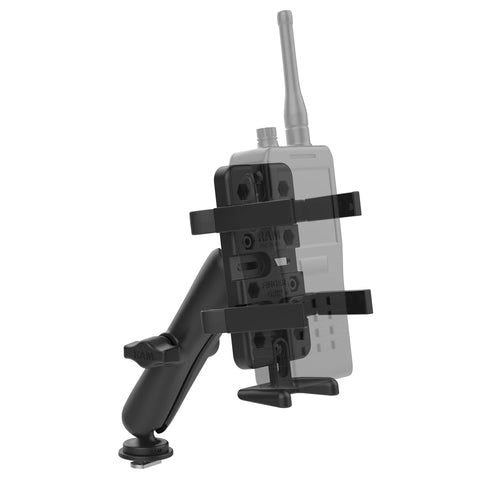

RAM-HOL-UN4-C-354-TRA1U RAM Finger-Grip™ Holder with Track Ball™ Base - Long
RAM-HOL-UN4-C-354-TRA1U RAM Finger-Grip™ Holder with Track Ball™ Base - Long
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
TRACK AND RADIO SHOWN IN PHOTOS ARE NOT INCLUDED.
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
FEATURES
- 1" B-size RAM® ball with adjustable T-bolt designed for track mounting systems including the RAM® Tough-Track™ and other third-party track systems
- Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
- Includes a B-size long length socket arm and RAM® Finger-Grip™ handheld radio holder with adjustable side arms for a variety of different radios
- RAM® Finger-Grip™ holds a variety of different 2-way radios and includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
- Backed by a lifetime warranty
This RAM® Track Mount for handheld radios (RAM-HOL-UN4-C-354-TRA1U) is made up of a B size 1" ball molded to a high-strength composite base, a rubber friction washer and a stainless steel T-bolt for sliding into any third-party track system, or the RAM® Tough-Track™ line of tracks. Simply insert or slide the Track Ball™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball. Included in this kit is a B size long length socket arm and a RAM® Finger-Grip™ for handheld radios featuring adjustable side arms for a form-fit depending on your specific radio. This track mount is ideal for mounting 2-way radios to the Jeep JL and Gladiator dashboard track mount (RAM-DT-204-TRACK-A12U) and the new Ford Bronco dashboard track mount (RAM-DT-207-TRACK-EXA-29BU).
HARDWARE INCLUDED
Assembly Hardware
HOLDER DIMENSIONS
Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"
T BOLT DIMENSIONS
.48" x .95"
SOCKET TO SOCKET LENGTH
5.31"
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS
Marine-grade aluminum
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
1.17 lb
