RAM-GDS-DOCK-W7-POEU RAM GDS® Uni-Conn™ Powered Low Profile Wall Dock with PoE
RAM-GDS-DOCK-W7-POEU RAM GDS® Uni-Conn™ Powered Low Profile Wall Dock with PoE
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
PLEASE READ ALL SPECIFICATIONS BEFORE PURCHASING.
Overview

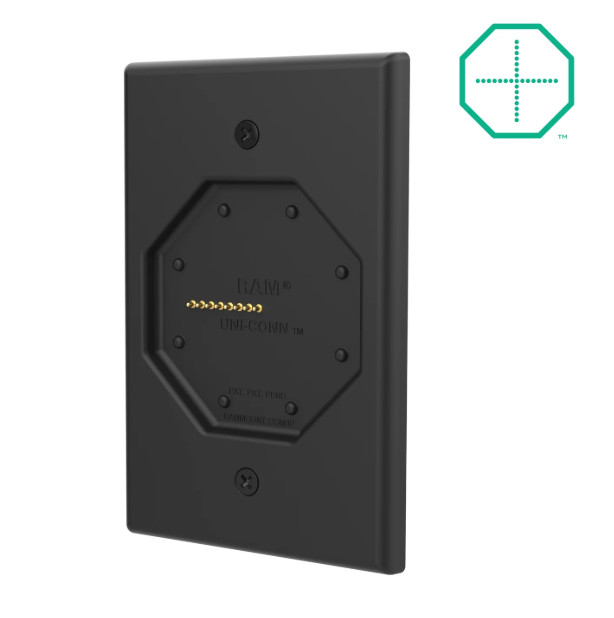

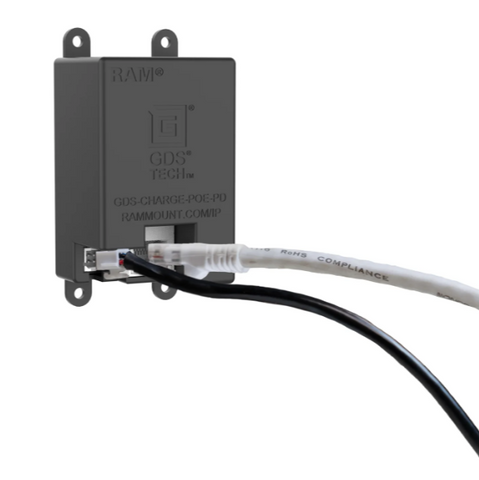

The GDS® Uni-Conn™ Powered Low Profile Wall Dock with PoE (RAM-GDS-DOCK-W7-POEU) is a wall docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the JST connector and PoE Adapter. This dock installs directly over a standard rectangular electrical outlet box. Easily dock and undock your device with the assistance of the magnetic attachment mechanism. One Dock to Connect Them All™ Always Protected. Always Connected.®
Features
-
Magnetic dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
-
Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
-
JST connector enables high-speed charging capabilities
-
Installs directly over standard outlet boxes
-
Backed by a 3-year warranty
Hardware included:
(2) #6-32 x 7/8" Machine Screws
Hole pattern:
2-Hole: 3.281" (Standard Electrical Box)
Materials:
High strength composite
Packaging type:
Box
Power specifications:
Required Input: POE+ (802.3at) or greater
Output voltage:
PD 3.0:
5V @ 3A
9V @ 2.22A
12V @ 1.67A
Power output:
20W Max
Transfer speed:
10/100Mbps
Warranty:
3 year warranty
Weight:
0.71 lb
