RAM-D-115 RAM Mounts Large D-Size Marine Electronics Mount (SEE SPECS)
RAM-D-115 RAM Mounts Large D-Size Marine Electronics Mount (SEE SPECS)
SPECIAL NOTE: THIS ITEM IS MUCH LARGER IN REAL LIFE THAN IT APPEARS TO BE IN THE PHOTOS. PLEASE BE SURE TO SEE ALL MEASUREMENTS AND WEIGHTS LISTED IN THE DESCRIPTION. ABSOLUTELY NO REFUNDS FOR FAILURE TO PROPERLY VIEW ALL SPECIFICATIONS. IF YOU RECEIVE THIS ITEM AND IT IS TOO LARGE FOR YOUR PROJECT, NO RETURN WILL BE ALLOWED AND NO REFUND WILL BE GIVEN.
Compatible devices:
COMPATIBLE DEVICES
-
Garmin
- GPSMAP 8410
- GPSMAP 8410xsv
- GPSMAP 8412
- GPSMAP 8412xsv
- GPSMAP 8610
- GPSMAP 8610xsv
- GPSMAP 8612
- GPSMAP 8612xsv
- GPSMAP 922
- GPSMAP 922xs
- GPSMAP 942
- GPSMAP 942xs
- echoMAP Chirp 72-95 Series
- ECHOMAP Plus 92-97 Series
- Striker Plus 9sv
- Fishfinders and GPS Chartplotters
-
Lowrance
- HDS Carbon 7
- HDS LIVE 9
- HDS LIVE 12
- Hook Reveal 7 Series
- Hook Reveal 9 Series
- HOOK-9
- Fishfinders and GPS Chartplotters
-
Humminbird
- Fishfinders and GPS Chartplotters
-
Raymarine
- Fishfinders and GPS Chartplotters
OVERVIEW

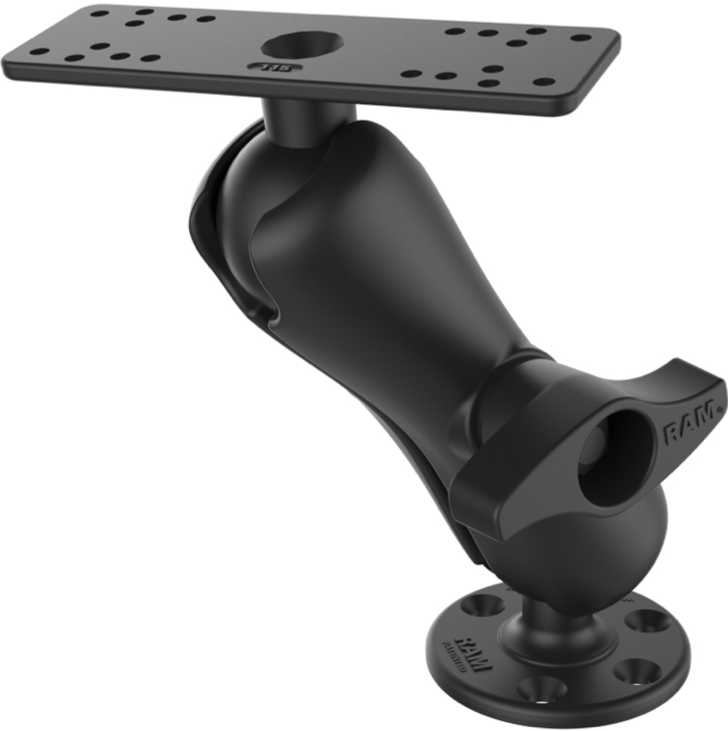

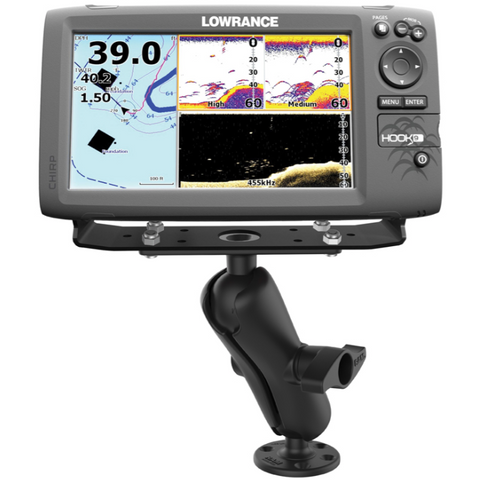

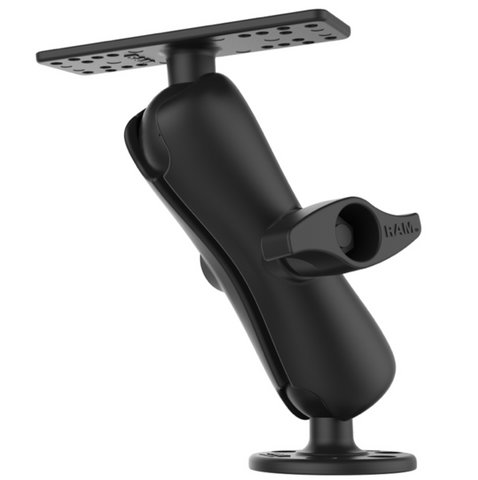

M-D-115 consists of a base with a 2.25” diameter D size ball, a standard arm and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.
PRODUCT DIMENSIONS
SOCKET-TO-SOCKET LENGTH
HOLE PATTERN
PLATE SIZE

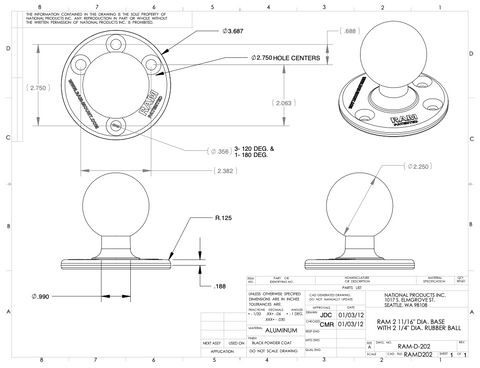

Bottom Plate: 3.68" Diameter
BALL/SOCKET SIZE
WEIGHT CAPACITY
MATERIALS
PACKAGING TYPE
WEIGHT
ADDITIONAL INFORMATION

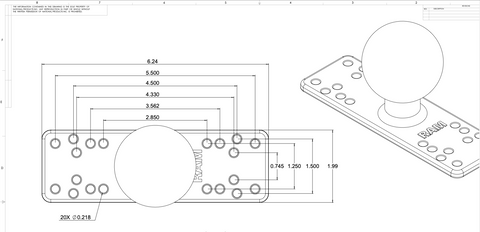

- The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
THIS PRODUCT SHIPS TO THE UPPER 48 UNITED STATES ONLY (NO INTERNATIONAL SHIPPING)
