RAM-D-101U-C RAM Mounts Double Ball Mount with Two Large Round Plates - D Size Short
RAM-D-101U-C RAM Mounts Double Ball Mount with Two Large Round Plates - D Size Short
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
SPECIAL NOTE: PLEASE READ SPECIFICATIONS CAREFULLY. THIS PRODUCT FEATURES THE RAM MOUNTS D-SIZE 2.25-INCH BALL AND SOCKET CONFIGURATION. ABSOLUTELY NO RETURNS OR EXCHANGES FOR REASON "TOO LARGE" - NO EXCEPTIONS.

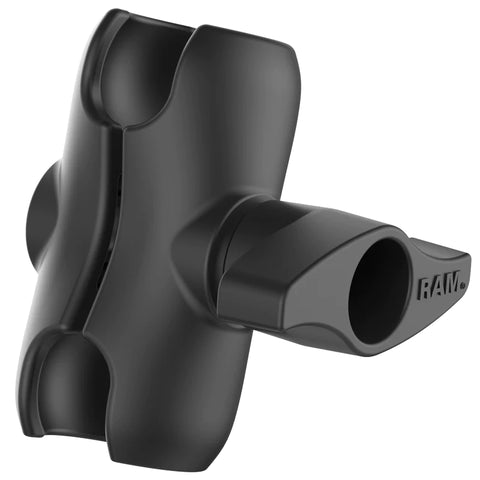

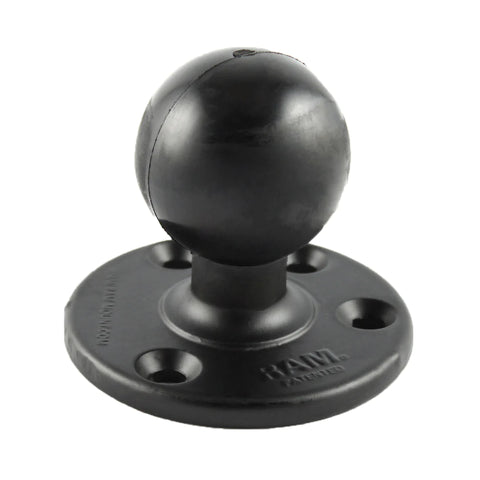

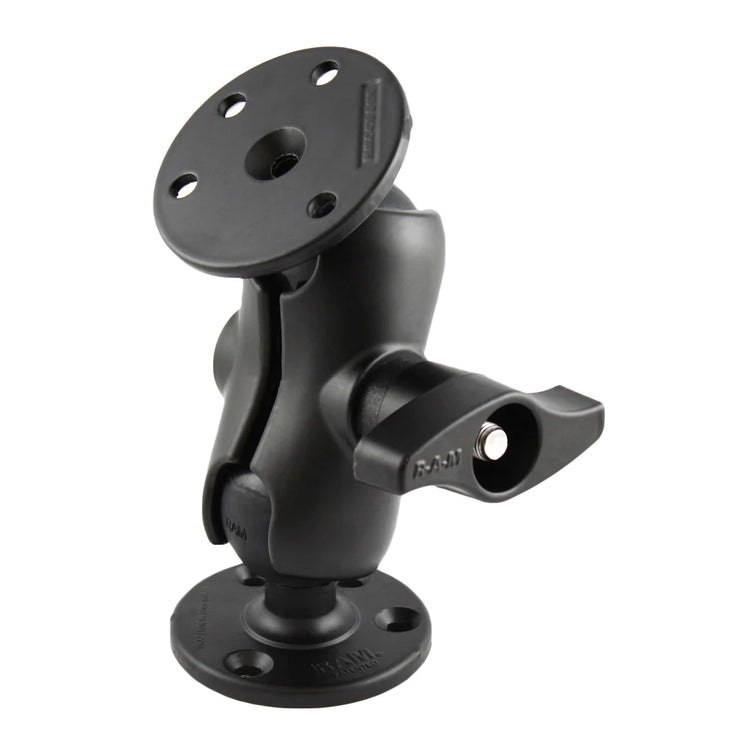

The RAM-D-101U consists of (2 qty) 3.68" diameter round bases and SHORT length double socket arm. The 3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.
PRODUCT DIMENSIONS
Overall Height: 7.875"
SOCKET TO SOCKET LENGTH
3.6"

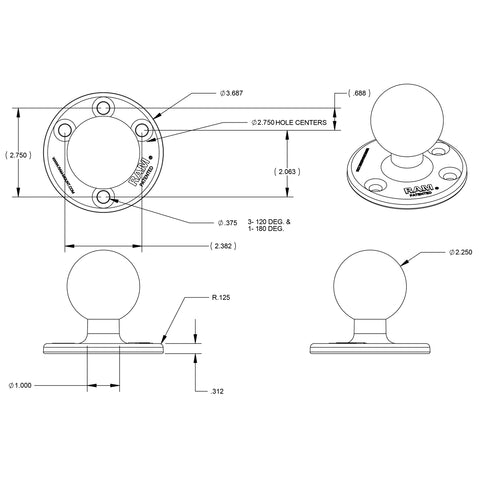

HOLE PATTERN
See Drawing
BALL SIZE
D Size (2.25")
WEIGHT CAPACITY
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.0 lb
