RAM-B-107-1U RAM Mounts Drill-Down Double Ball Mount for Humminbird Piranha + More
RAM-B-107-1U RAM Mounts Drill-Down Double Ball Mount for Humminbird Piranha + More
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.
Compatible devices:
-
Eagle
- Cuda 240i
- Cuda 240
- Cude 168
- Cuda 128
- FishEasy 320C
- FishEasy 240
-
Humminbird
- Piranha MAX 20
- Piranha MAX 15
- Piranha MAX 10
-
Lowrance
- X-4
- X-4 Pro
OVERVIEW

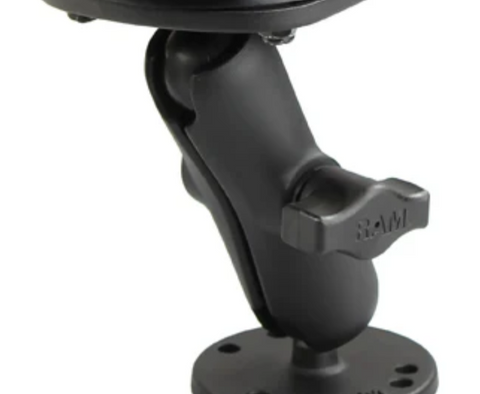

The RAM-B-107-1U, powder coated marine grade aluminum mount, consists of a double socket arm, one 2.5" diameter round base and connecting Humminbird/Eagle/Lowrance marine base. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at the cradle base and bottom base. With a twist of the arm knob, you can move the marine mount to your optimum viewing position.
PRODUCT DIMENSIONS
Overall Height: 5"
SOCKET-TO-SOCKET LENGTH
3"

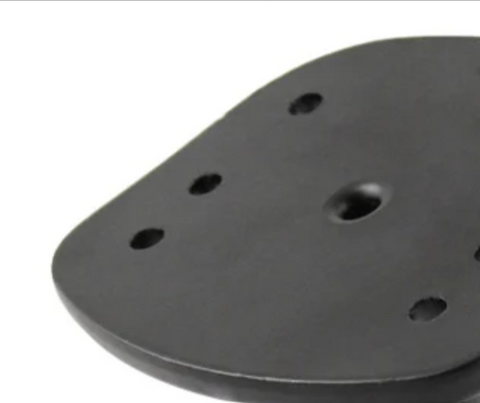

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
3-Hole 120-Degree: 1.812" Diameter
See Drawing
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
2 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.62 lbs.
