RAM-B-103U-C RAM Mounts Long Double 1-Inch Socket Arm with Round Plate
RAM-B-103U-C RAM Mounts Long Double 1-Inch Socket Arm with Round Plate
MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
FEATURES
- Round plate features industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
- Includes B size long length RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
OVERVIEW

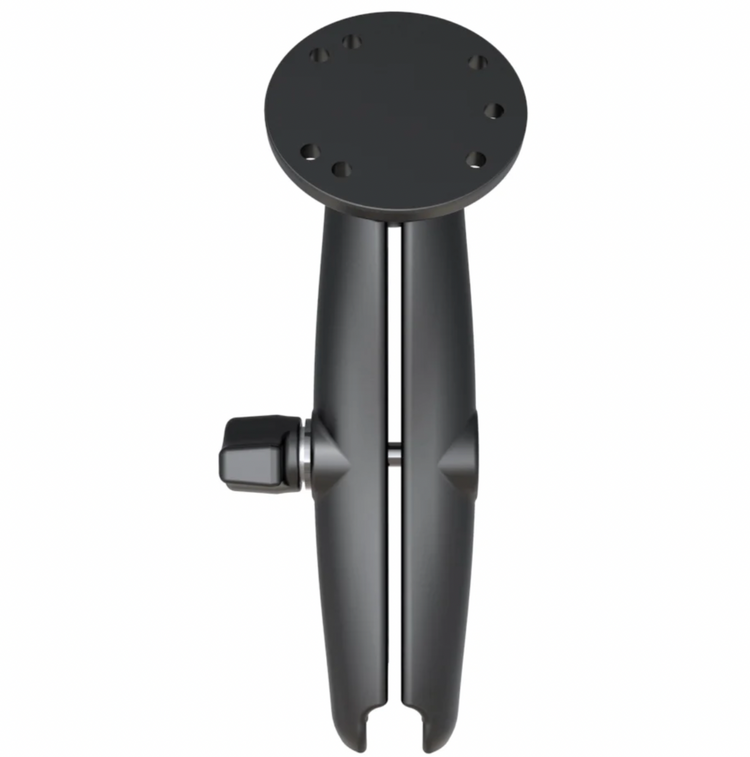

The RAM-B-103U-C consists of a 2.5" round base and LONG double socket arm that will accept 1" ball bases. The round base contains pre-drilled holes, including the universal AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to maneuver the mount to your optimum viewing position.
SOCKET TO SOCKET LENGTH
5.31"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
0.65 lb
