RAM-B-101-G4 RAM Mounts Double Ball Mount with Hardware for Garmin Striker + More

RAM Mounts

$ 35.99
Save $ 5.50

RAM-B-101-G4 RAM Mounts Double Ball Mount with Hardware for Garmin Striker + More (LIGHT DUTY)

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

COMPATIBLE DEVICES:

Striker 4

Striker 4dv

Striker Plus 4cv

Striker Vivid 4cv

echo 100

echo 150

echo 300c

ECHOMAP Plus 42cv

ECHOMAP Plus 43cv

ECHOMAP Plus 44cv

ECHOMAP Plus 45cv

OVERVIEW

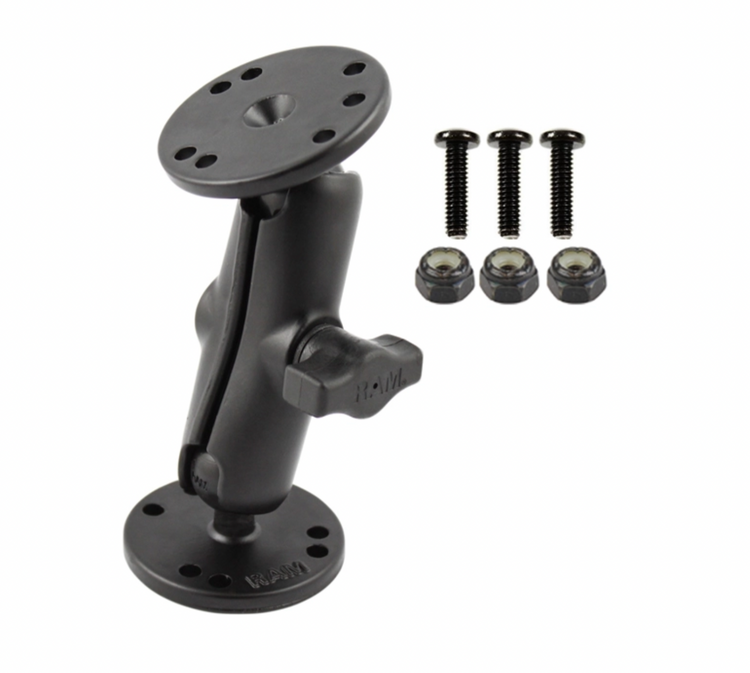

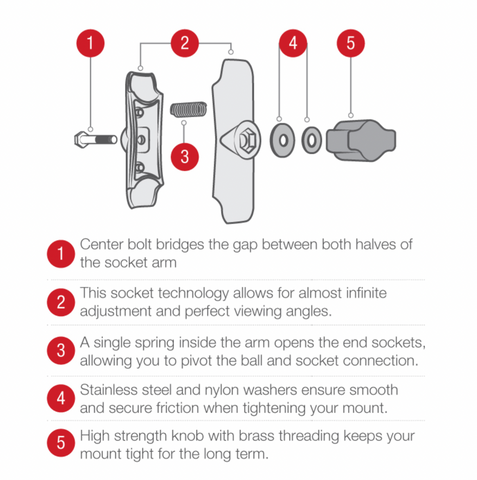

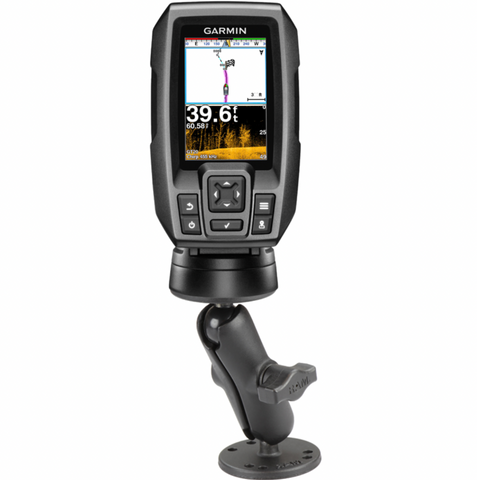

The RAM-B-101-G4 consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and round adapter base that attaches directly to the bottom of the Garmin echo^™ and Striker^™ 4 Series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware that is used to attach the Garmin echo^™ to the RAM Mount.

HARDWARE INCLUDED

(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts

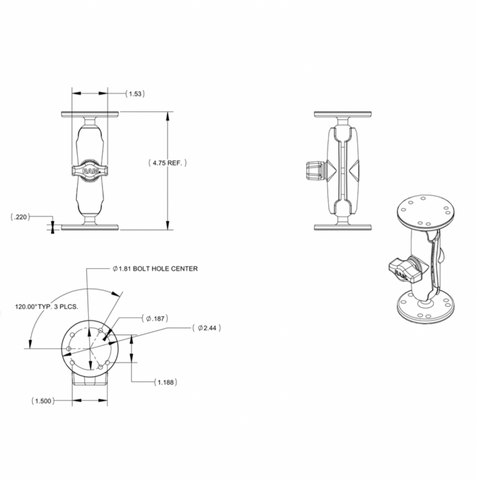

PRODUCT DIMENSIONS

Overall Height: 5"

SOCKET-TO-SOCKET LENGTH

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE

2.5" Diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Retail Bag

WEIGHT

0.75 lbs.
