RAM-101U-235-1 RAM Mounts C Size 1.5" Ball Rail Mount with Double U-Bolt Base & 2.5" Round Plate AMPs Hole Pattern - Synergy Mounting Systems

RAM-101U-235-1 RAM Mounts C Size 1.5" Ball Rail Mount with Double U-Bolt Base & 2.5" Round Plate AMPs Hole Pattern

RAM Mounts

  • $ 64.49
  • Save $ 7.50


RAM-101U-235-1 RAM Mounts C Size 1.5" Ball Rail Mount with Double U-Bolt Base & 2.5" Round Plate AMPs Hole Pattern

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

NOTE: The attached photo may not accurately reflect the size of this unit. This is a heavier-duty item than RAM Mounts B-sized 1-inch products. This product features the RAM Mounts C-sized 1.5-inch balls and sockets. The product weight is 1.5 LBS. Please see the video below to get a feel for the size.

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN

FEATURES

  • 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes double U-bolt base that accommodates rails from 1.25" to 1.5" in diameter and a medium length, C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

OVERVIEW

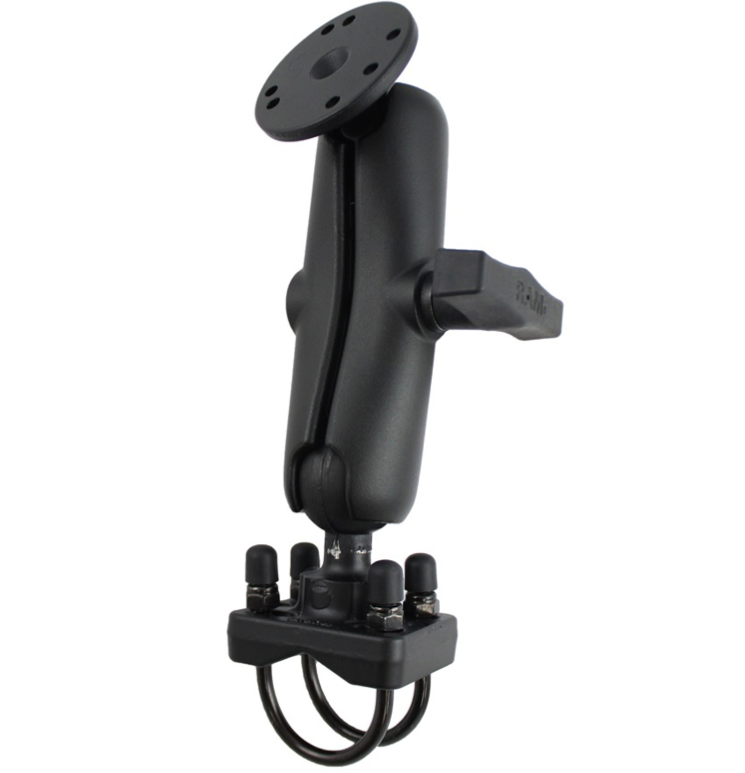

The RAM-101U-235-1 consists of a double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1.25" to 1.5" in diameter. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

HARDWARE INCLUDED

(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps


CLAMP RANGE

1.25" - 1.5" diameter


SOCKET-TO-SOCKET LENGTH

4.66"


HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter


BALL/SOCKET SIZE

C Size (1.5")


WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs


MATERIALS

Marine-grade aluminum


PACKAGING TYPE

Poly Bag


WEIGHT

1.46 lbs.
