RAM-101-DAN1U RAM Mounts C Size 1.5" Rail Mount with Double U-Bolt Base, Medium Length Double Socket Arm & Universal Laptop Tough-Tray Cradle
RAM Mounts 793442925399
RAM-101-DAN1U RAM Mounts C Size 1.5" Rail Mount with Double U-Bolt Base, Medium Length Double Socket Arm & Universal Laptop Tough-Tray™ Cradle

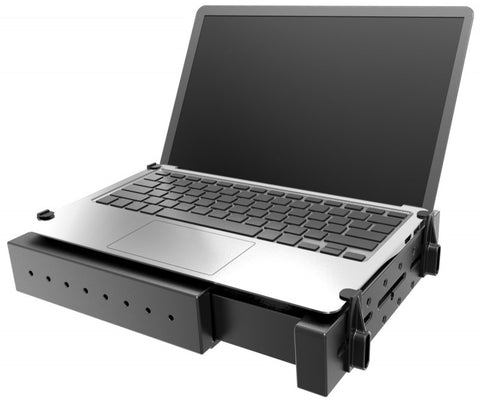

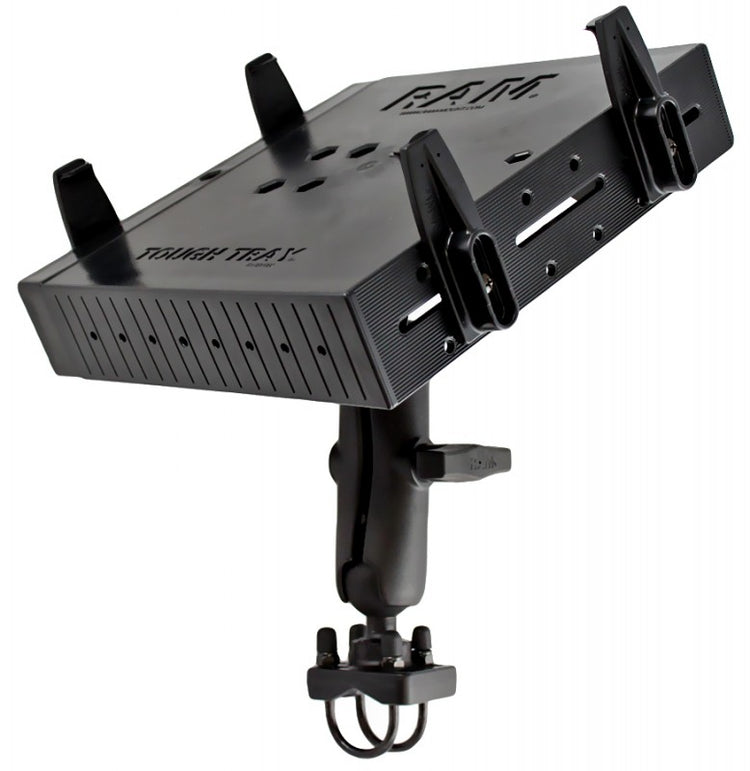

The RAM-101-DAN1U consists of the RAM Tough-Tray™ with flat retaining arms, STANDARD length double socket arm and 1.5" diameter ball double u-bolt base. The RAM Tough-Tray™ is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops.
The tray includes four FLAT (4) side clamping arm; they allowing for your laptop to close completely while in the tray. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics.
Tray Depth: 10.0"
Tray Thickness: 2.125"
Tray Width (Expansion): 10" to 16"
Side Clamp Arm Height: 0.5" (min) to 1.75" (max)
0.75" to 1.25"
High Strength Composite & Powder Coated Marine Grade AluminumBall Size:
1.5" Rubber Ball Size
The "U" in the part number reflects product packaged in poly bag.
