RAM-HOL-SAM60CPU RAM USB-C Powered Dock for Samsung Tab Active5 - 3 - 2

RAM Mounts

$ 81.99
Save $ 9.50

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.

BALL FOR BACK OF CRADLE IS SOLD SEPARATELY.

SPECIAL NOTES:

- RAM SKIN FOR SAMSUNG TAB ACTIVE 5 IS NEEDED FOR CHARGING

- The RAM-HOL-SAM60CPU requires you use either a Samsung OEM skin or the compatible RAM^® Skin^™for your tablet. It will not fit properly without a skin.

COMPATIBLE DEVICES:

SAMSUNG

Tab Active5

Tab Active3

Tab Active2

Features

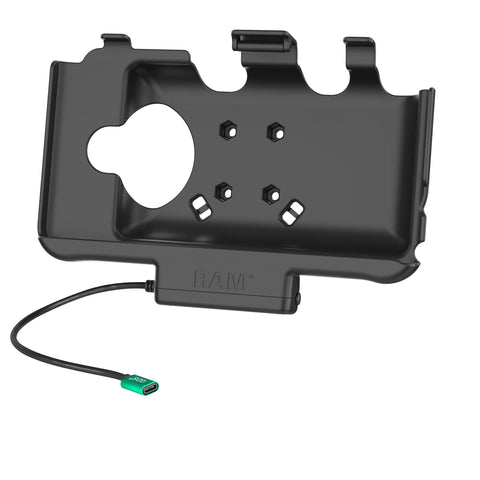

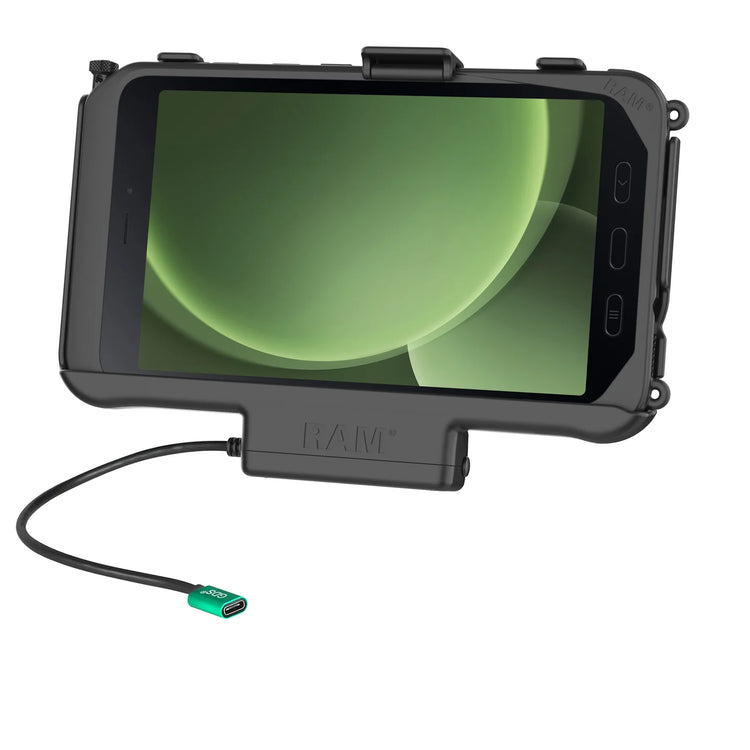

RAM^® EZ-Roll'r^™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable

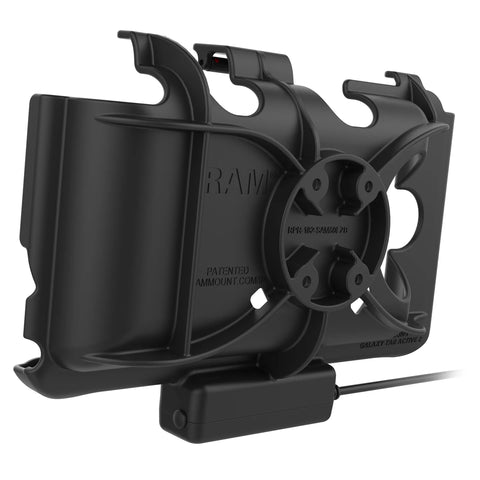

Compatible with the Samsung OEM skin as well as the RAM^® Skin^™; built-in cavity in the back allows for GDS^® Hand-Stand^™ compatibility
Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS^® shoulder strap loops on RAM^® Skin^™
Backed by a 3-year warranty

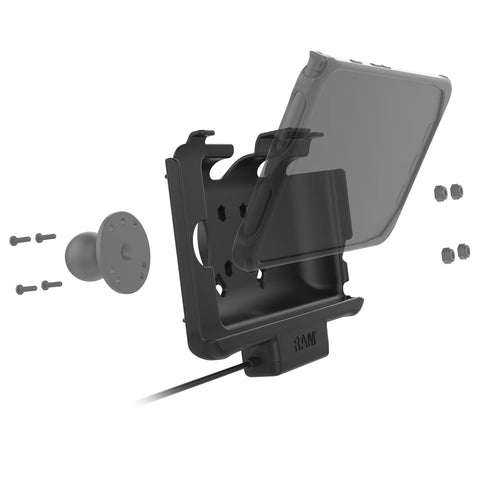

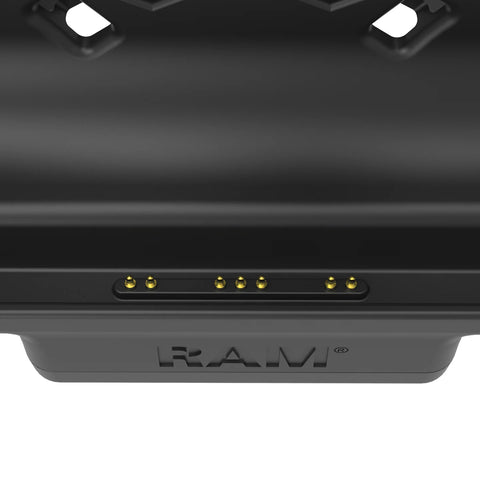

The RAM^® USB-C Powered Dock for Samsung Tab Active5, Tab Active3 & 2 (RAM-HOL-SAM60CPU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and charging capabilities are provided to the device through GDS^® pogo pins. This modular dock is compatible with the RAM^® Skin^™, factory device skin, and GDS^® Hand-Stand^™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM^® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

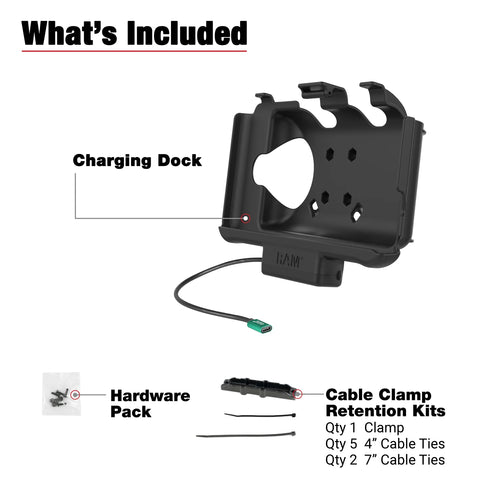

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties

product dimensions

Width: 9.24"
Height: 6.34"
Depth: 2.57"

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input voltage

5.3-5.4VDC

output voltage

5VDC

power output

500mA

input connector

USB Type-C Female

input cable length

215mm

Warranty

3 year warranty

Weight

0.71 lb

Additional Information

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM^® Tough-Case^™ options.

Questions & Answers:

Does this require a skin or can it be used with just the tablet and no skin/case?

The RAM-HOL-SAM60CPU requires you use either a Samsung OEM skin or the compatible RAM^® Skin^™for your tablet. It will not fit properly without a skin.
Does this in fact come with the ball shown in the picture? I only ask because it is greyed out, like the tablet.

The RAM-202U (round base) is in fact not included with the RAM-HOL-SAM60CPU and would need to be purchased separately.
What case do I need that will work for the charger?

The case you'll need is our RAM Skin™ for Samsung Tab Active5.
