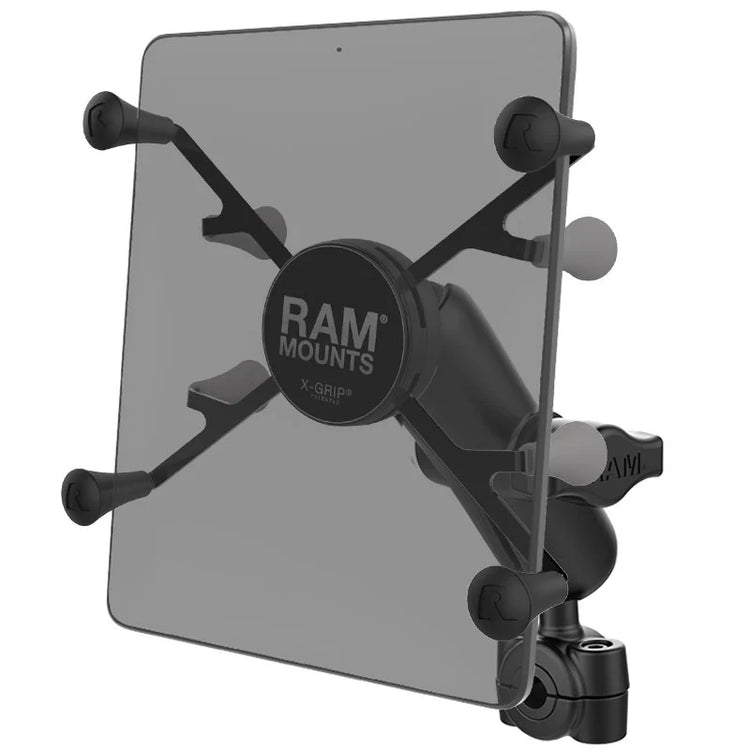

RAM-B-408-37-62-UN8U RAM X-Grip® with RAM® Torque™ Small Rail Base for 7"-8" Tablets

RAM Mounts

  • $ 87.49
  • Save $ 10


RAM-B-408-37-62-UN8U RAM X-Grip® with RAM® Torque™ Small Rail Base for 7"-8" Tablets

MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN.

PLEASE READ ALL SPECIFICATIONS BEFORE PURCHASING.

FOR INTERIOR VEHICLE USE ONLY.

BE SURE TO MEASURE YOUR DEVICE AND COMPARE TO HOLDER DIMENSIONS BELOW.

Holder dimensions:

Width Range: 2.5" - 5.75"
Depth Range: .875" max

Clamp range:

.375" - .625" diameter

Overview

Take your mobile entertainment on the road with the new RAM® Torque handlebar and rail mounting base. We’ve paired a B-size 1” rubber ball base that accommodates bars 3/8” – 5/8” in diameter with a B-size standard length arm the dynamic X-Grip® for 7”-8” tablets. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment.

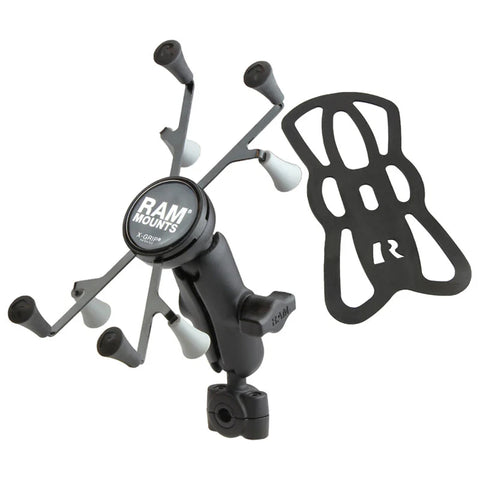

The spring-loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Hardware included:

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #8-32 x .75" Socket Head Cap Screws
(2) #8-32 Nylock Nuts
(2) .32" Composite Bushings
(2) .4" Composite Bushings
(2) .47" Composite Bushings
(2) .55" Composite Bushings
(1) 57.2mm Rubber Strip
(1) 9/64" Hex Key Wrench

Holder dimensions:

Width Range: 2.5" - 5.75"
Depth Range: .875" max

Clamp range:

.375" - .625" diameter

Socket to socket length:

3"

Ball size:

B Size (1")

Weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

Materials:

Marine-grade aluminum
High strength composite

Packaging type:

Poly Bag

Weight:

0.8 lb
